SPECIFICATIONS

Brand Name: Hightop

Color: Yellow,Green

Core Components: Engine

Engine: HONDA GX390/CHANGFA CF186FAE

Machine Size: 2200 x950x1650mm

Machinery Test Report: Provided

Model: HT-1000

Place of Origin: Shandong, China

Product name: Hydraulic Road Roller

Static line load (before /after): 77/56N/cm

UNIQUE SELLING POINT: High operating efficiency

Vibration frequency: 75HZ

Video outgoing-inspection: Provided

Warranty: 1 Year

Weight (KG): 970

Work weight: 970kg

power: 13hp/9hp,3600rpm

speed: 0-8km/h

type: Diesel engine

Welcome to Hightop

We ,HIGHTOP Road Roller,mini excavator and mini skid steer loader manufactuer Located in Shandong China.Our mini excavators all CE EPA Approved, our excavator models 0.8ton to 9ton crawler excavators,you can Choose the suitable model you need.We support various customizations as machine Color, Configuration,Design,etc.Looking forward to cooperationg with you. Please Send Enguiry directly.More information, services and suitable price.

Our Product

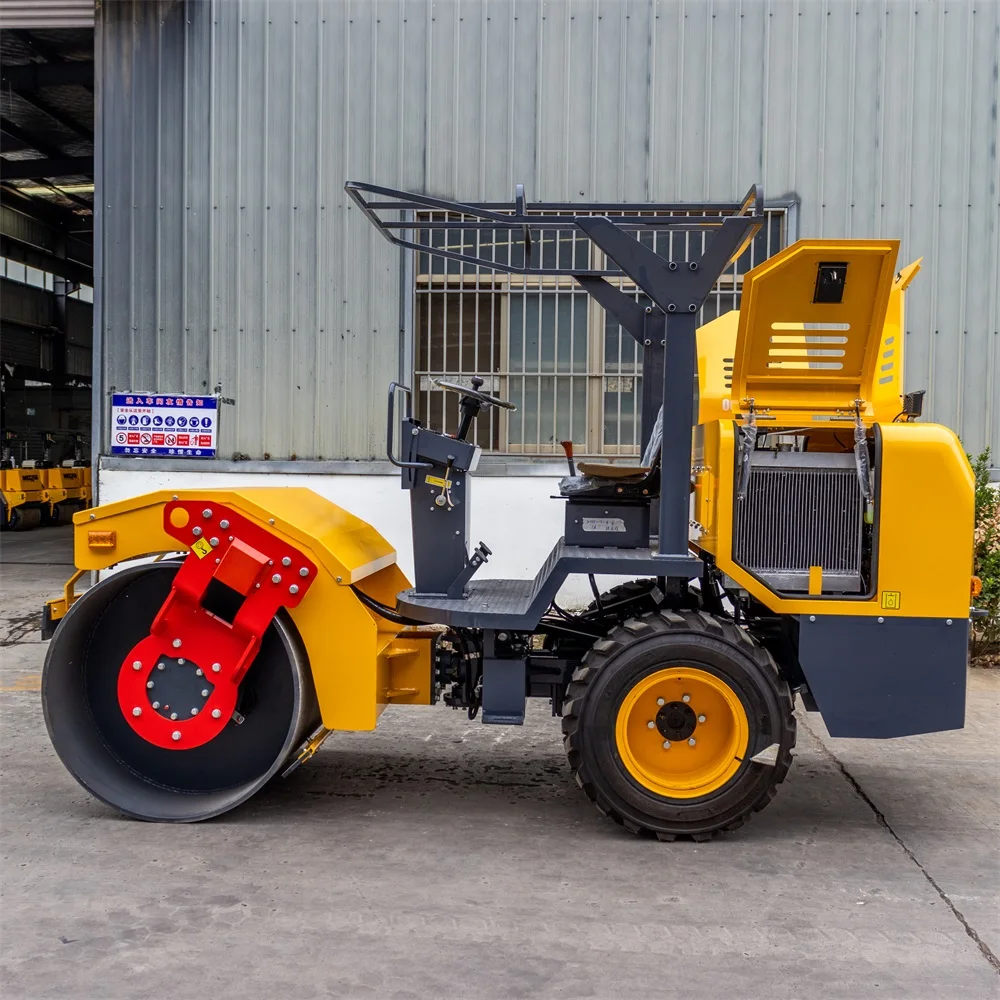

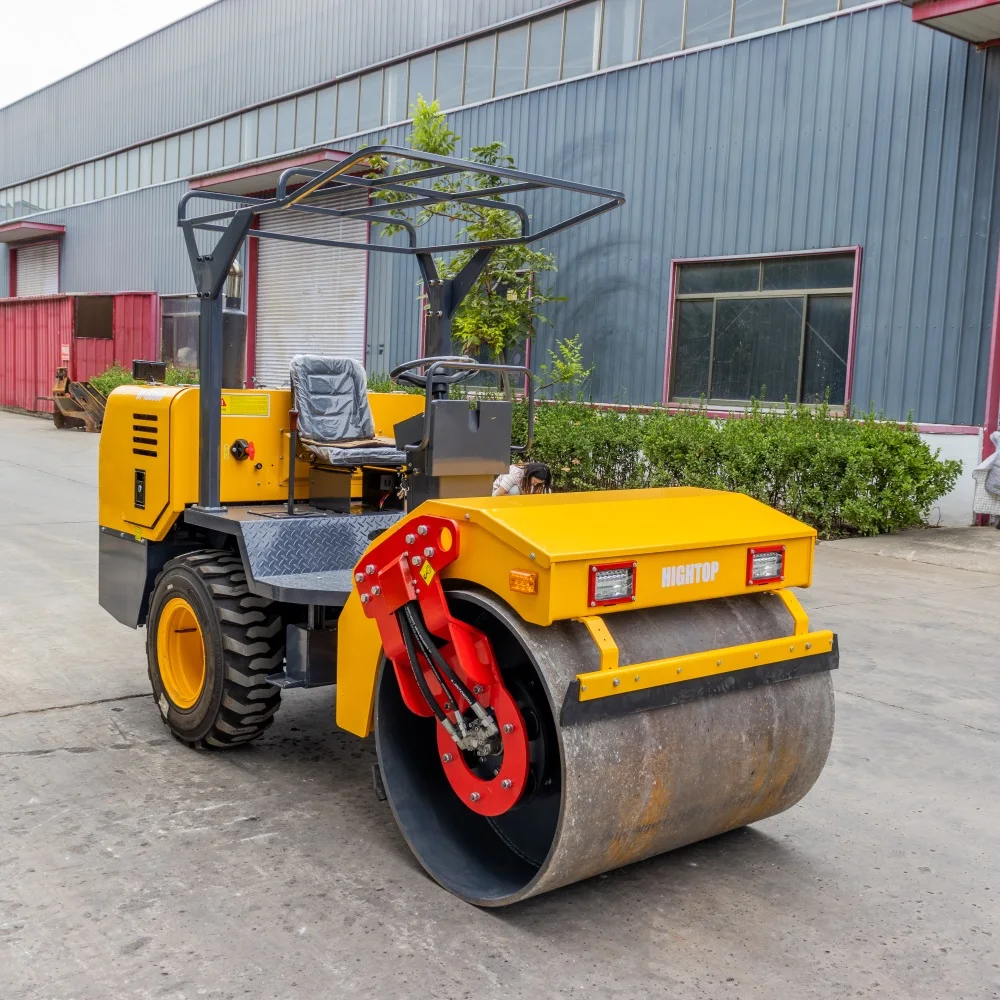

Product advantages： 1、 Front single steel wheel, hydraulic vibration; rear double rubber wheel drive, anti-skid, strong climbing ability; 2、 Three gears forward and one gear backward; the main clutch adopts maintenance-free and adjustment-free clutch, which can effectively protect the transmission components such as diesel engine, gearbox and drive axle; 3、The engine is equipped with a four cylinder regular diesel engine that meets the national three emission standards, with high efficiency, fuel saving and good cold start performance; 4、The brake adopts front wheel disc brake + rear wheel mechanical foot brake; the parking brake adopts disc caliper hand brake; 5、 Front and rear fuselage hinged, hydraulic power steering, flexible turning and small radius; 6、The front frame adopts a pin-type design, which is beneficial to the compacting operation of the machine

Product Paramenters

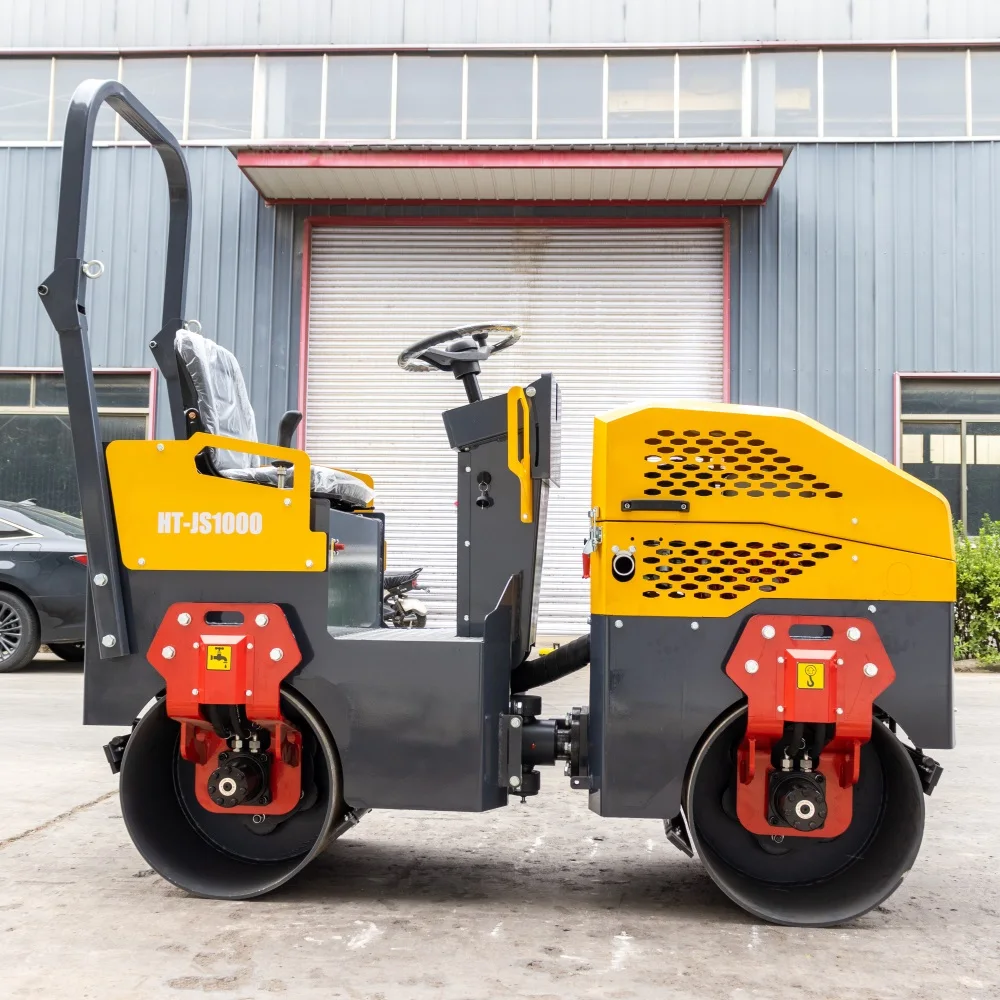

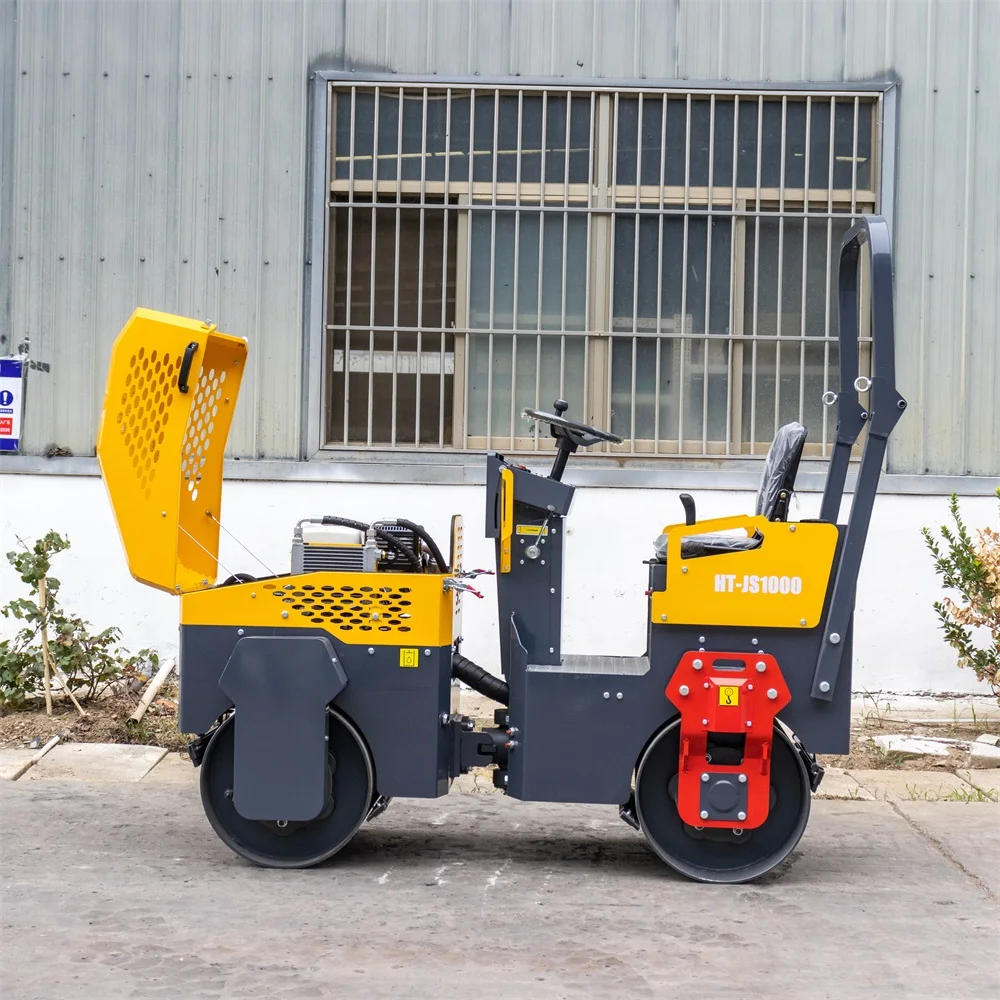

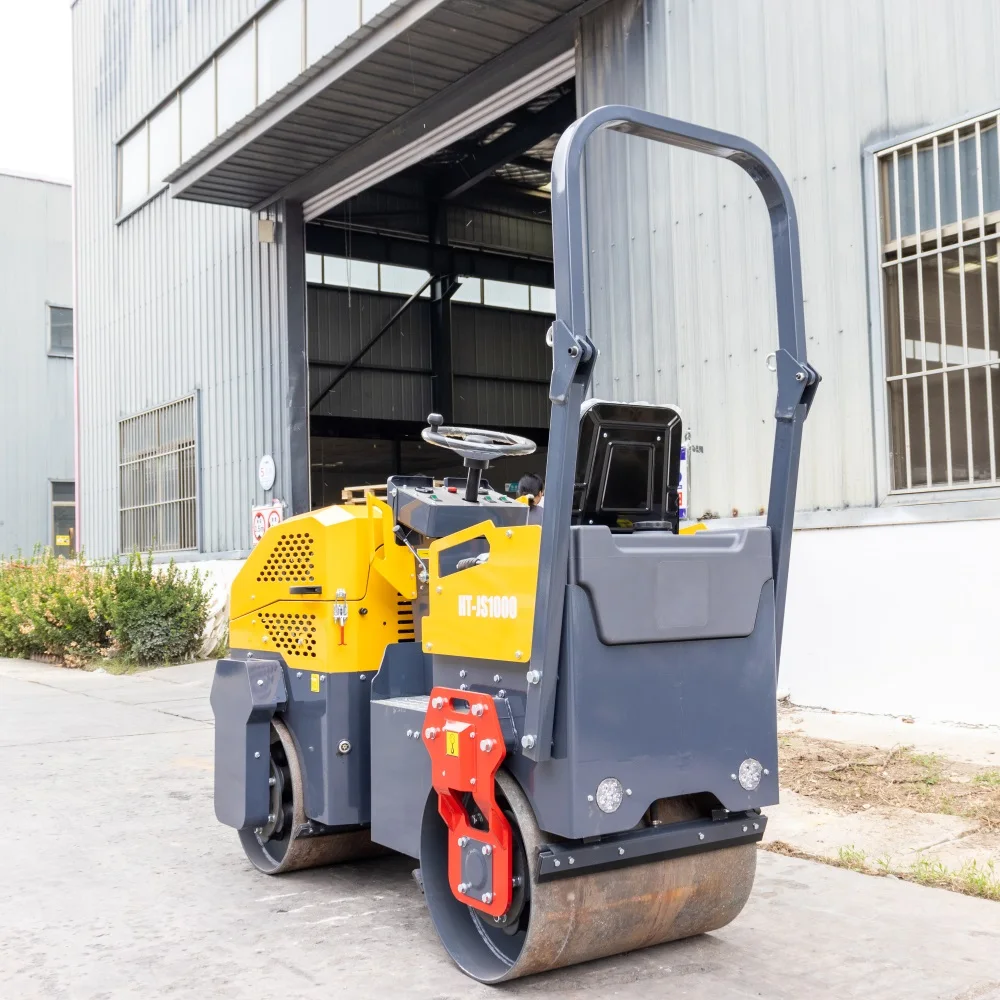

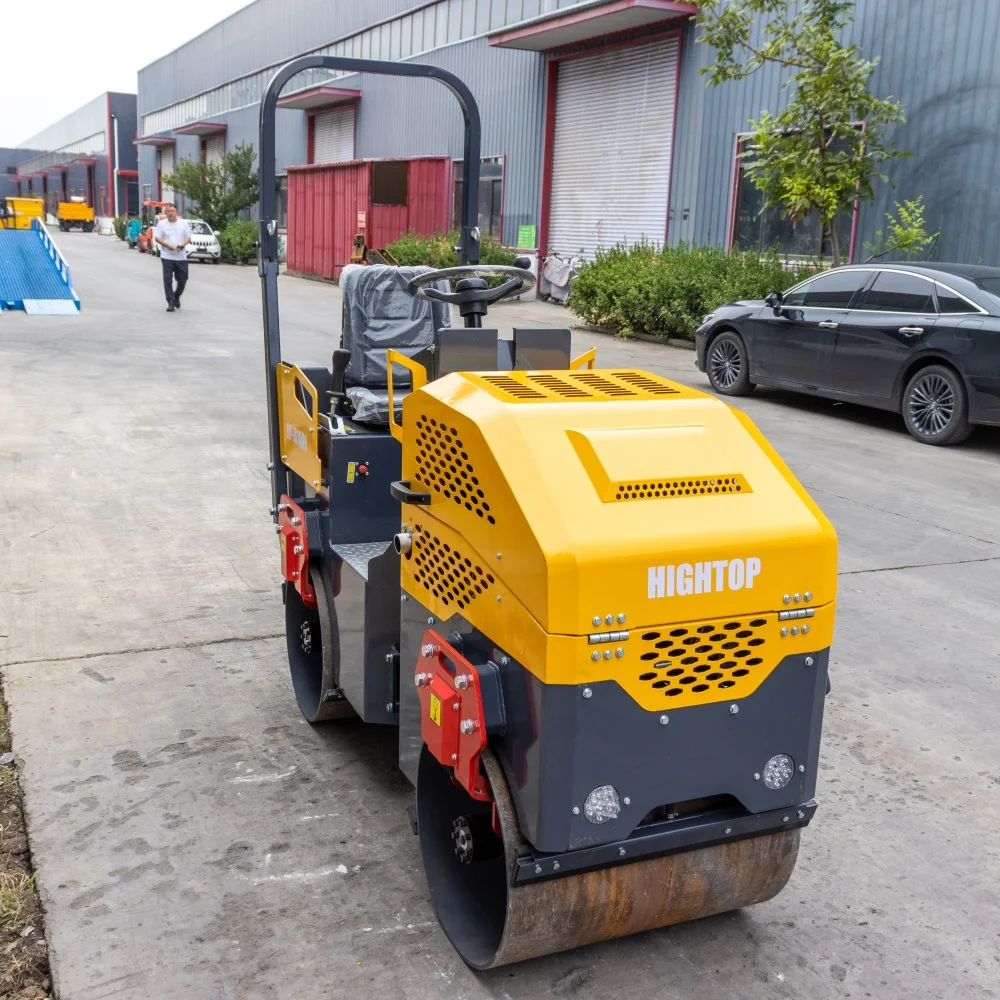

Full Hydraulic Road Roller Model : HT-1000
Walking
Walking Speed	0-8km/h
Turning radius	2000mm
Gradeability	30%
Compaction
Static line load (before /after)	77/56N/cm
Nominal amplitude	0.5mm
Vibration frequency	75Hz
Exciting force	30KN
Working Data
Drive	Hydraulic drive-stepless speed change Front and rear wheel double drive
Vibration	One-button vibration-electromagnetic clutch
Turning	Hydraulic steering
Watering method	Electronically controlled pressure water spray
Engine
Model	HONDA GX390/CHANGFA CF186FAE
Type	Gasoline /Diesel,Air-cooled four-stroke
Power	13hp/9hp,3600rpm
Fuel Tank	5.5L
Fuel consumption	300g/kw·h
Dimensions
Steel wheel width (front and rear)	700mm
Steel wheel diameter(front and rear)	530mm
Length	2100mm
Width	860mm
Total height (without frame)	1600mm
Package size	2200 x950x1650mm
Weight	970kg

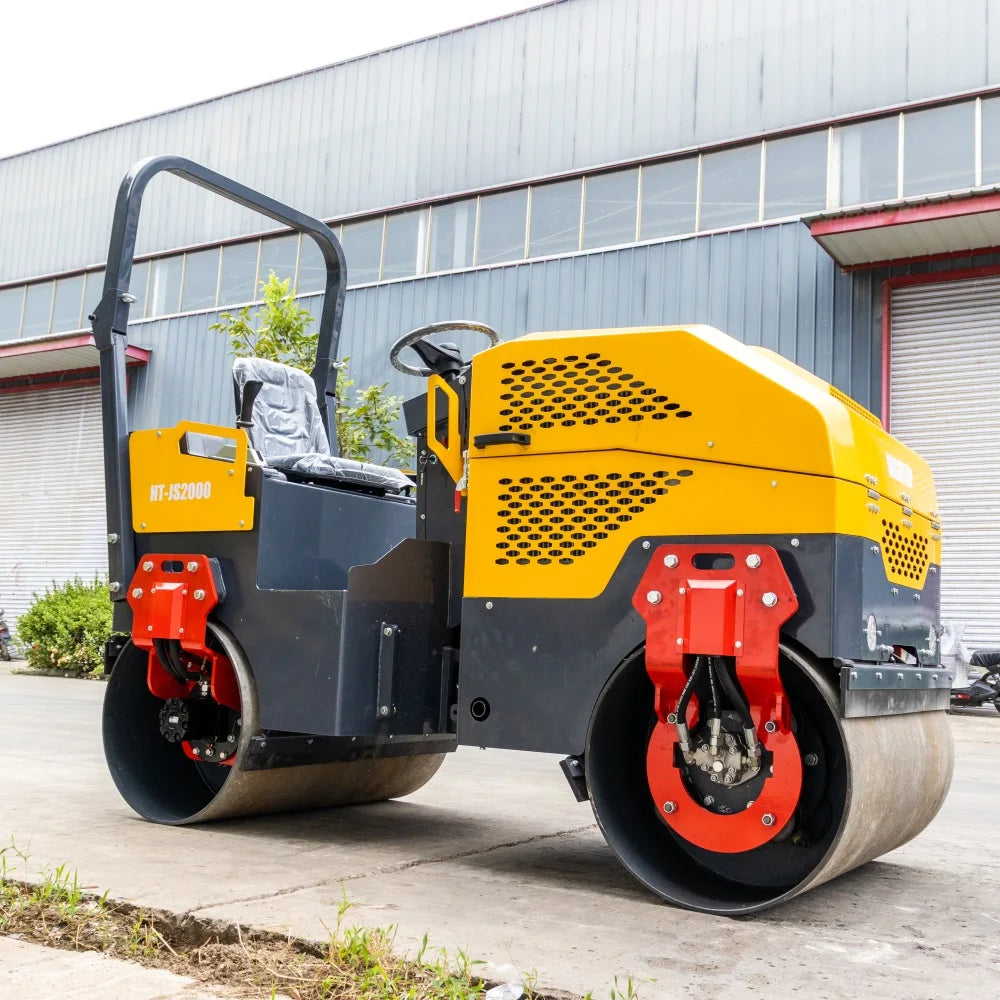

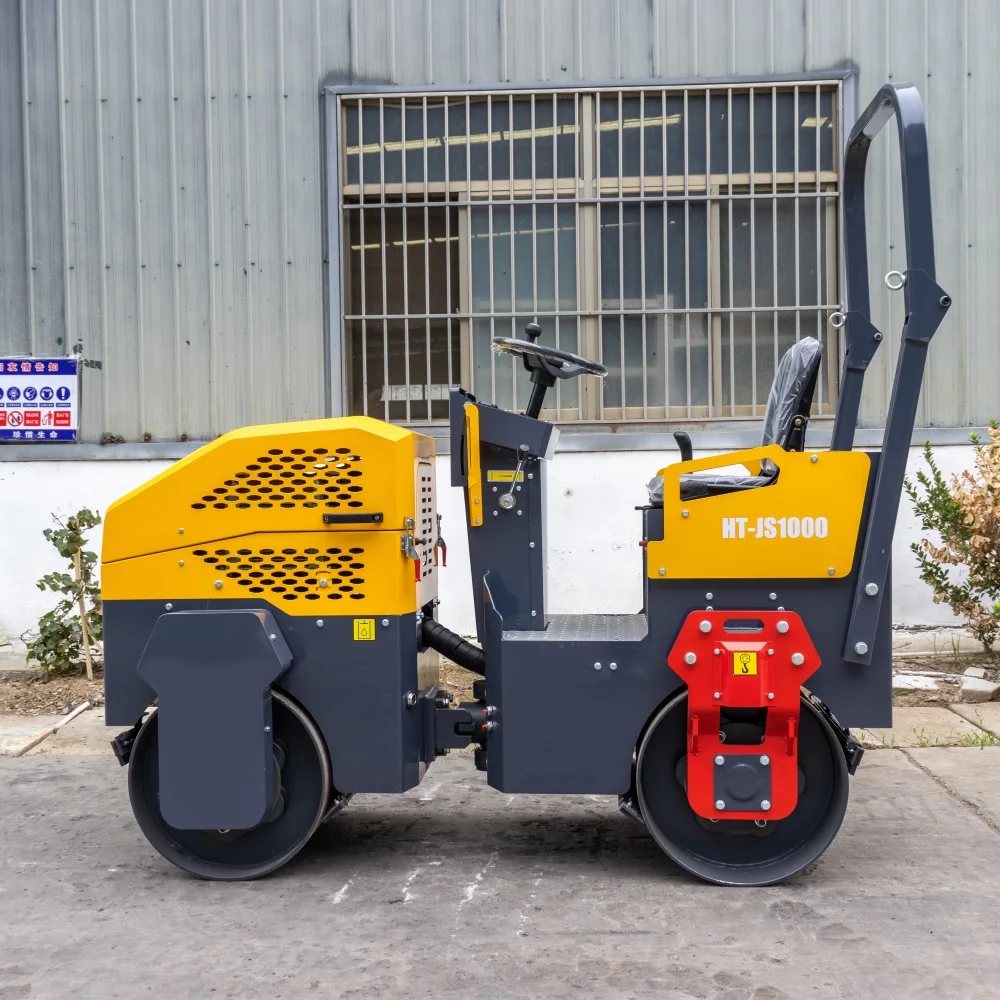

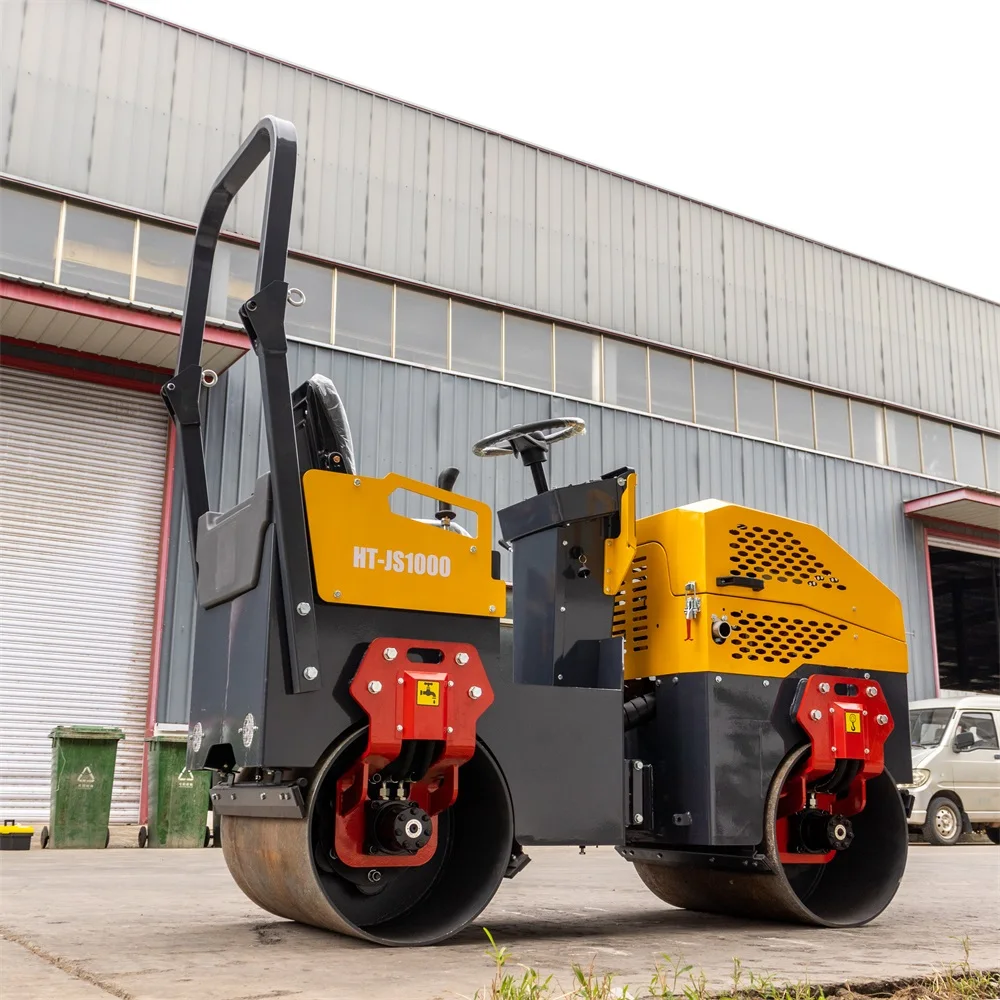

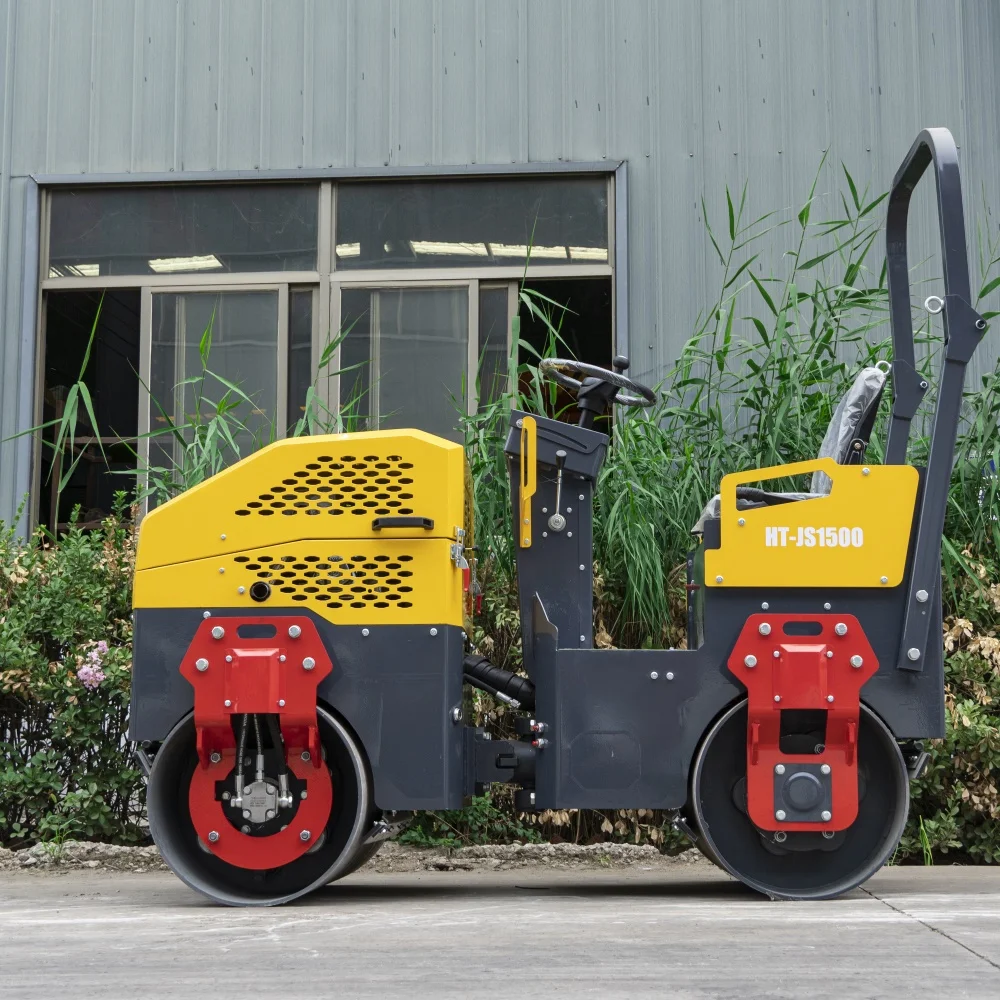

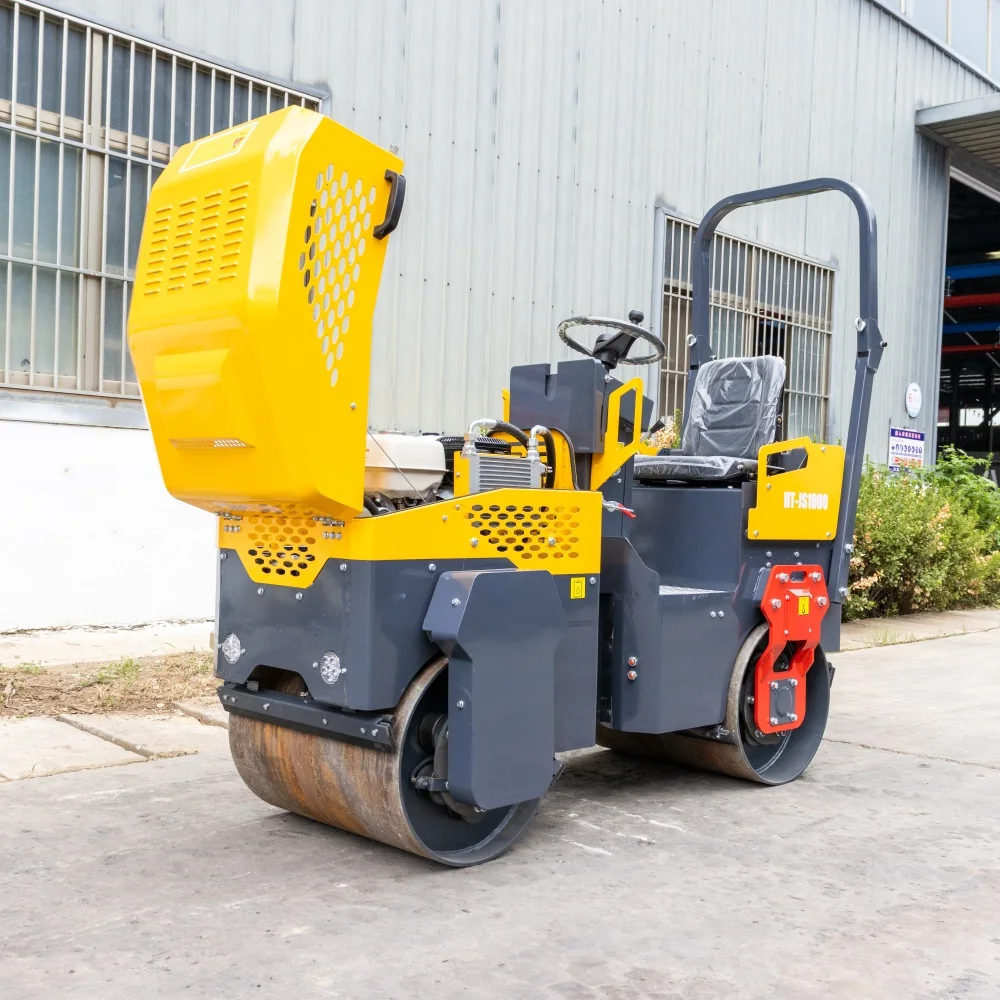

Product Details

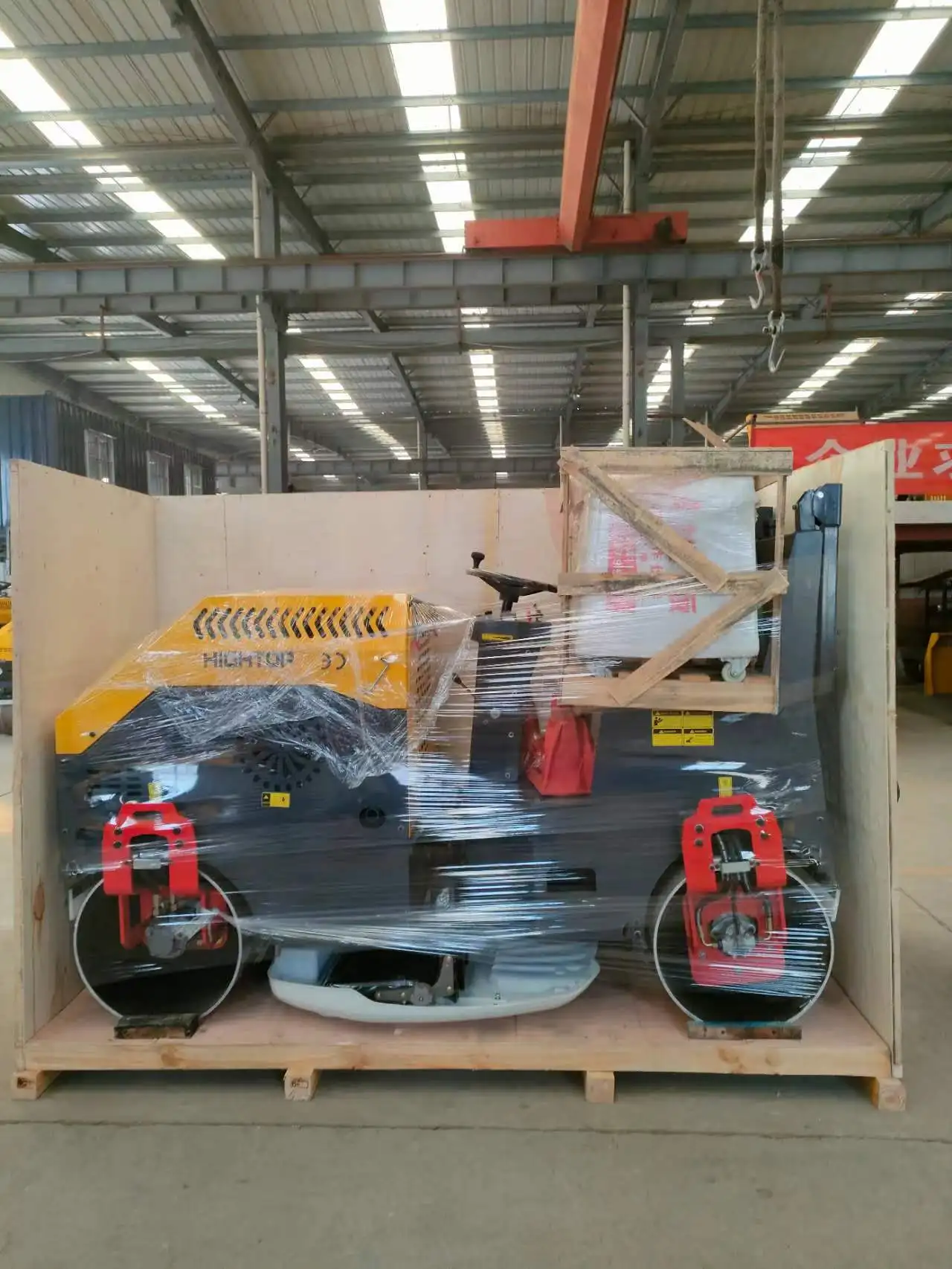

Packaging&Shipping

Exhibition

FAQ

Q:Whether are you a factory?
A:YEAH, We are golf cart factory, Located in Jining,shandong,Province
Q:As First time shopping online from China, how about the operation?
A:No worry, we have over 20years export experiences to all over the world, we have the professional support, we would introduce
all clear for you happy shopping.Order-production-shipment-delivery
Q:What’s the quantity loading for container 20ft,40hq
A:Standard model HT320 6units in 20ft, 22units in 40HQ;Special requirement,there ajustment; One unite with plywood case packed;
Q:How about the after services?
A:our products one year warranty,We have professional Technical and after-services Team, when we receive the clients issue
feedbacks,we would deal the issue and offer the professional feedbacks at first time and to check the issue reason and offer the
right support or Free spare parts;
Q:How to begin the shopping?
A:Please send your enquiry or message here, then we will make the final offer and invoice for you final checking then finish the
shopping
Q:How about the payment term?How to pay?
A:We support 100% In advance; or deposit in advance,balance before the shipment;
We accept TT(Wire transfer), online transfer, Credit card, VISA, Paypal, apple pay,..L/C At sight....
