SPECIFICATIONS

After-sales Service Provided: Online support

Brand: SINOTRUK

Brand Name: SINOTRUK

Capacity (Load): 21 - 30T

Condition: New

Drive type: 4x2/6x2/6x4/8x4/8x6/4x4/6x6/etc

Emission: Euro-2

Emission Standard: Euro 2

Engine: WD615.87

Front/Rear suspension(mm): 1430/2370

Fuel Type: Diesel

Gross Vehicle Weight: 25-30T

Horse Power: 290hp

Horsepower: 351 - 450hp

Place of Origin: JINAN

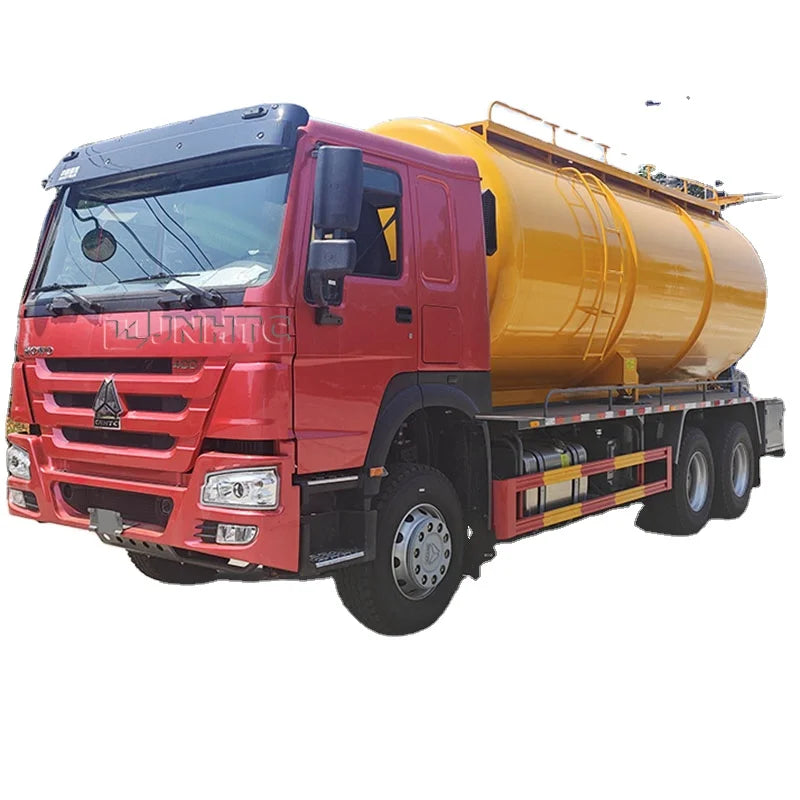

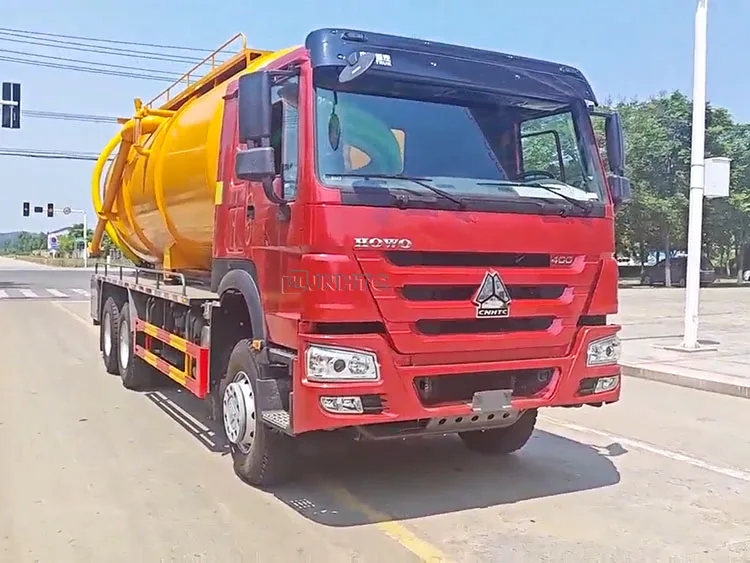

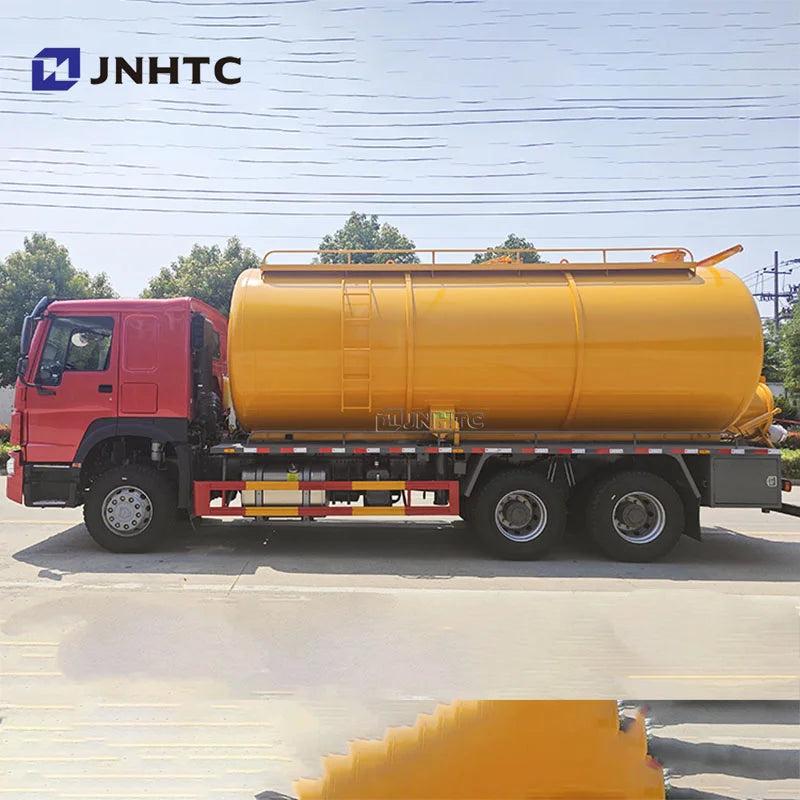

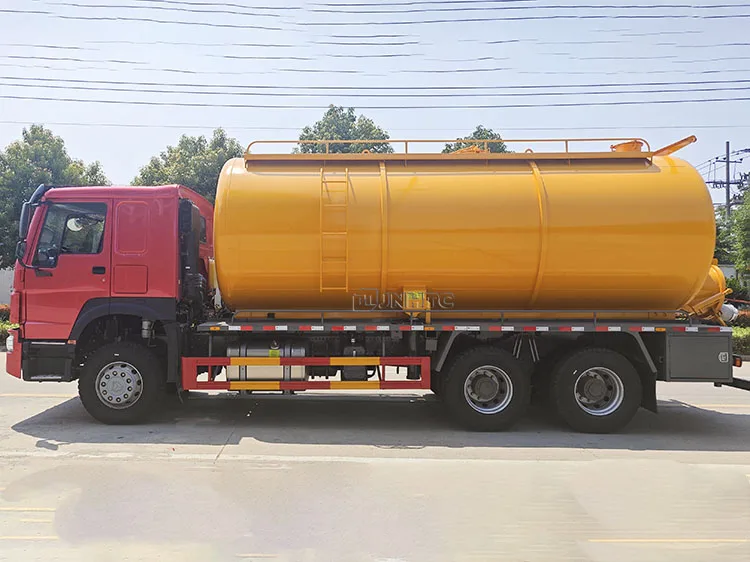

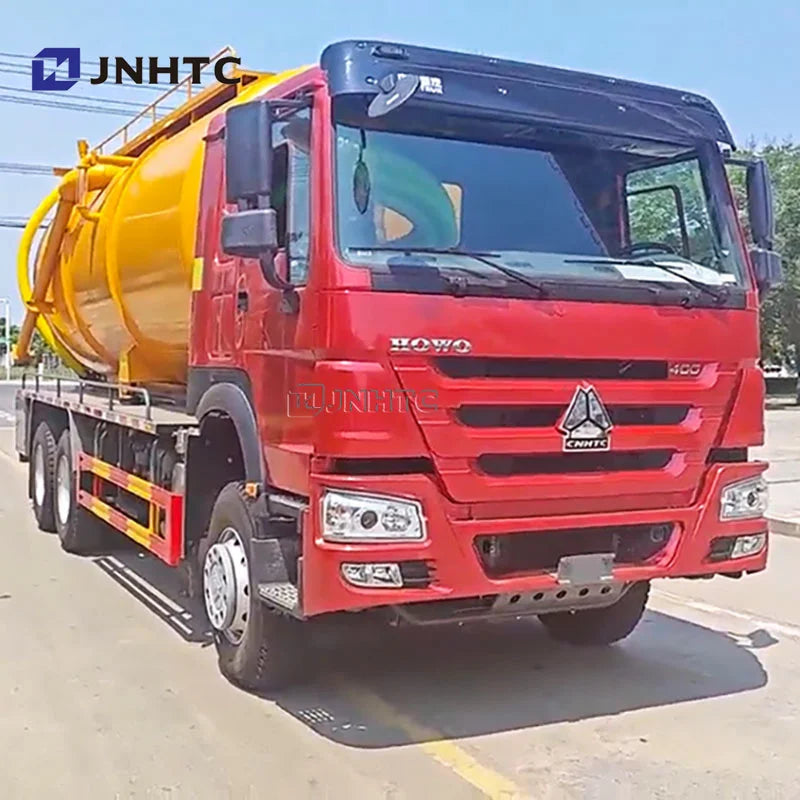

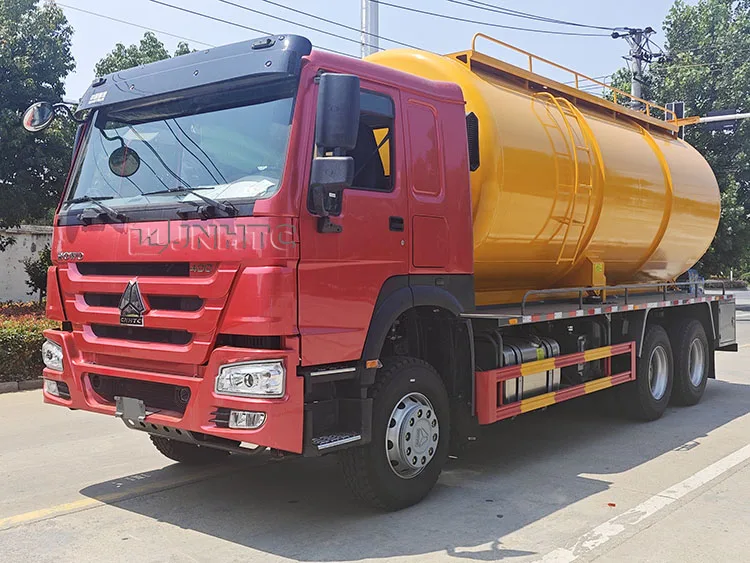

Product name: Sinotruk Sewage Suction Truck

Tank Volume: 10,000L

Tire: 12.00R20 Steel Wire Tire

Transmission: 10 Forward

Transmission Type: Automatic

Vehicle Dimensions: 9250X2495X3830mm

Volume: 100001 - 25000L

Model	ZZ1257V4647B1
Driver's Cab	HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver.
Engine	Model: WP10.380E201, Euro II emission standard, 4 stroke injection diesel engine, 6 Displacement: 11.596L Brand: Weichai
Steering	Model: BOSCH Hydraulic steering with power assistance Left hand driving
Clutch	Φ430 Pull-type diaphragm spring clutch
Transmission	Model: HW19710, 10 forward and 2 reverse Manual type With transmission power take-off HW70 Max Torque: 1900N·M
Front Axle	Model: VGD071 Drum brake system Rated loading capacity :7000kgs
Rear Axle	Model: ST16 Capacity: 16000kgs Drum braking steering axle,self-adjusting arm Speed ratio: 4.803
Wheelbase	4600+1350 mm
Brake System	Type :Wabco braking system Engine exhaust valve brake
Oil Tanker	400L aluminum alloy fuel tank
Tires	Types: 295/80R22.5 tubeless tires; 18PR 10 pcs, plus one pc spare tire
Bumper	High metal bumper
Frame	Frame double layer

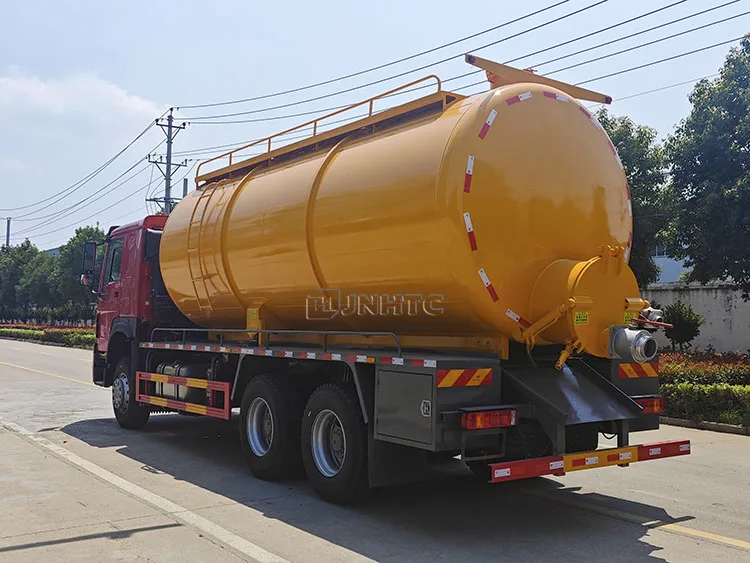

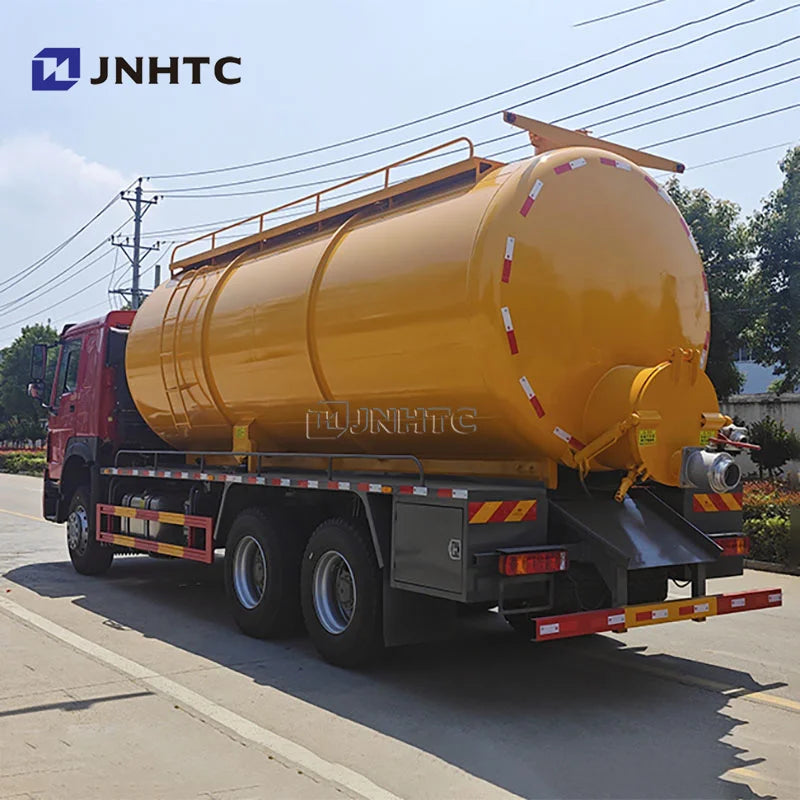

Sewage suction tank	Tank volume: 24 cubic meters 8mm thick tank, domestic vacuum pump, the tank can be lifted, and the back cover is opened and closed hydraulically; other features are standard;
