SPECIFICATIONS

Application: Farm

Color: Red

Engine Marked power (KW): 177(240)/2200kW(HP)/r/min

Engine type: 6-cylinder

Front / rear Ballast (kg): 100/600

Fuel tank capacity: 410L

Product name: KAT 240hp 4WD Agricultural Tractors KR2404EX Farm Big Tractors

Speed Forward(kw/h): 3-34

Wheel Base: 2880mm

brand name: Top Brands

by wheel: 4Wd

core components: Motor,Pump,Pressure Vessel,Gearbox,Engine,Gear,Bearing

drive type: Gear Drive

engine brand: Imported

engine model: SC9DK250G3

key selling points: High Productivity

machinery test report: Provided

make: KAT

place of origin: Henan, China

rated power (hp): 240hp

type: Wheel Tractor

usage: Garden Tractor

video outgoing-inspection: Provided

warranty: 1 Year

weight: 9352

Product Overview

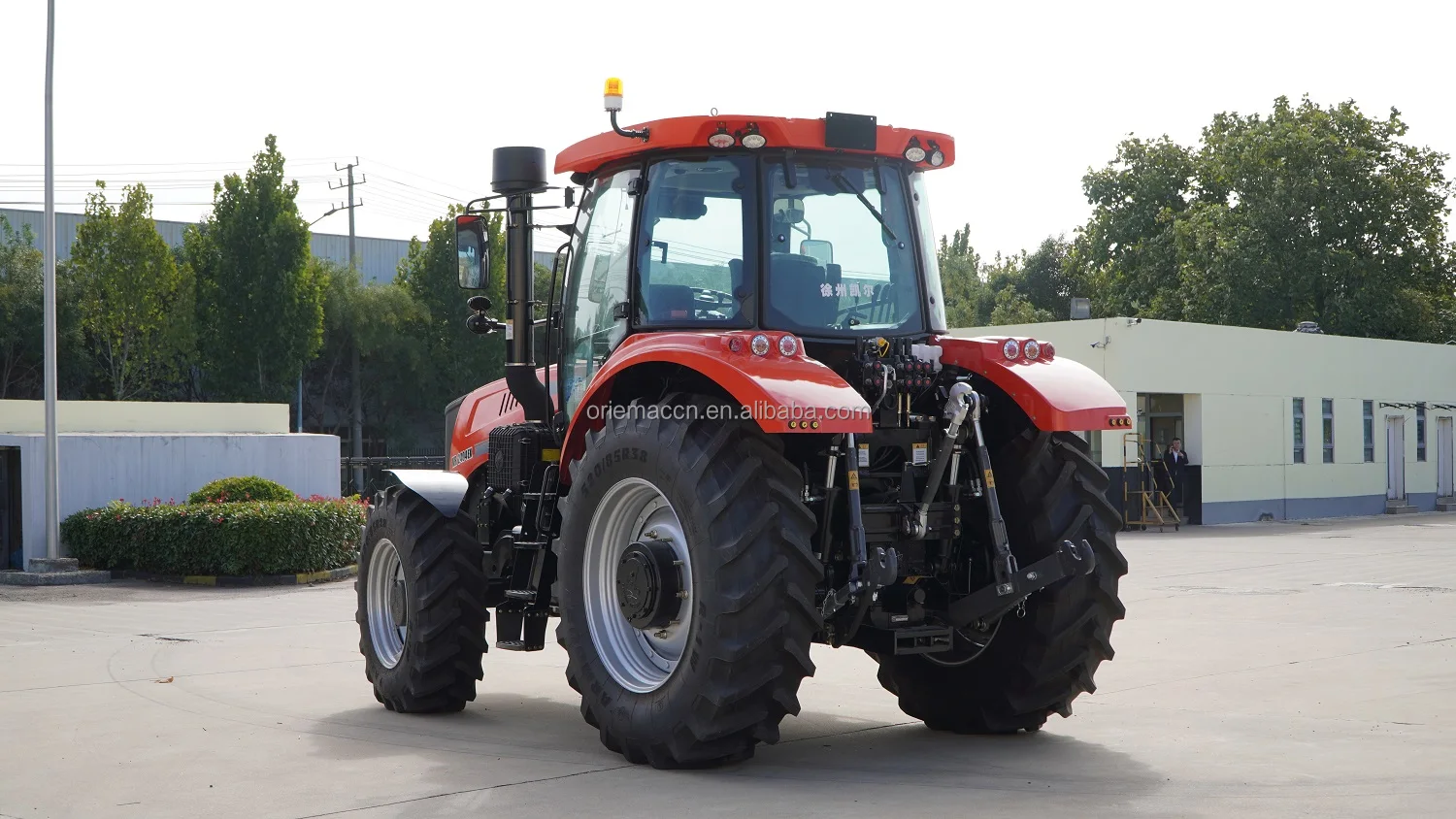

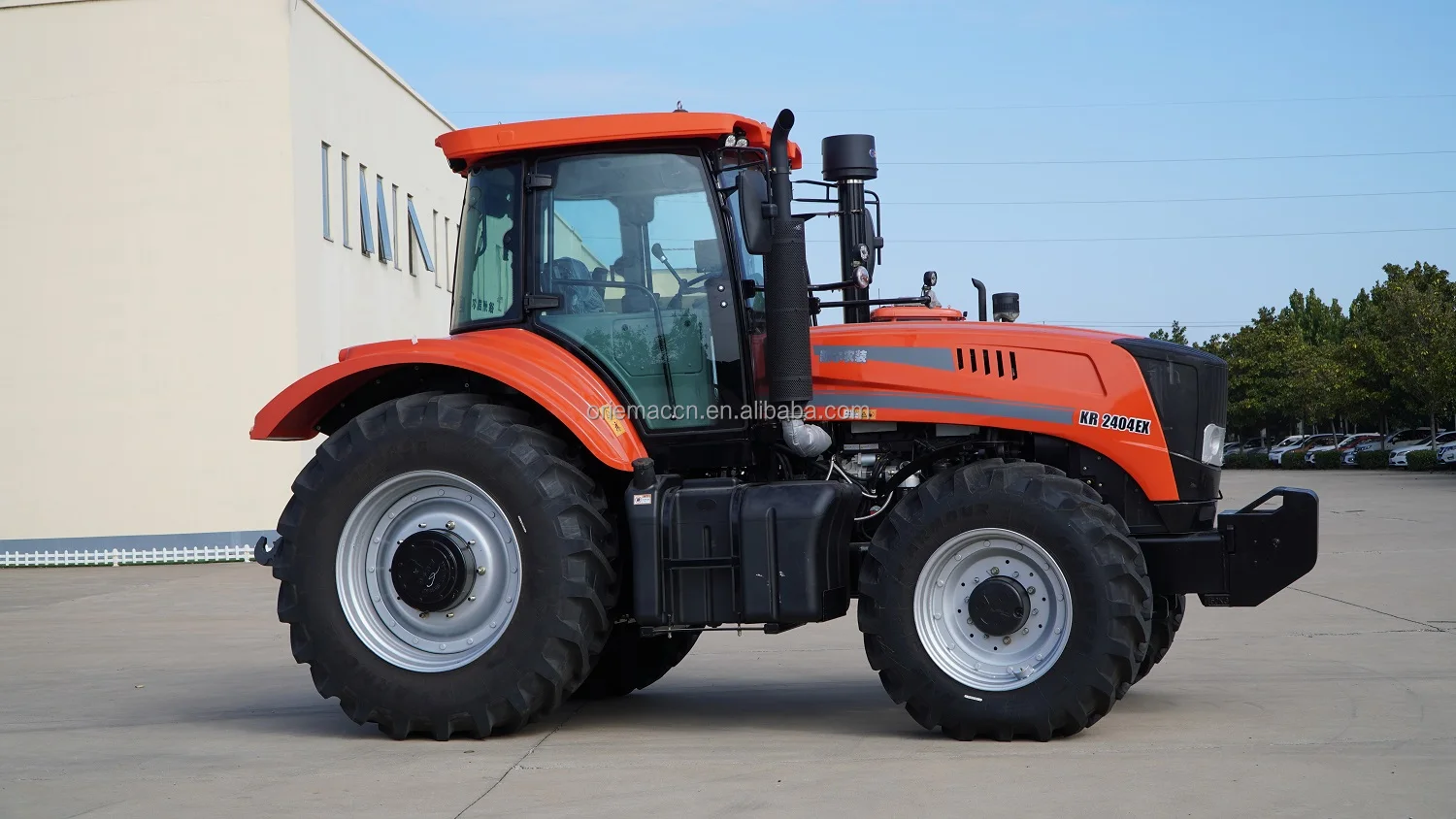

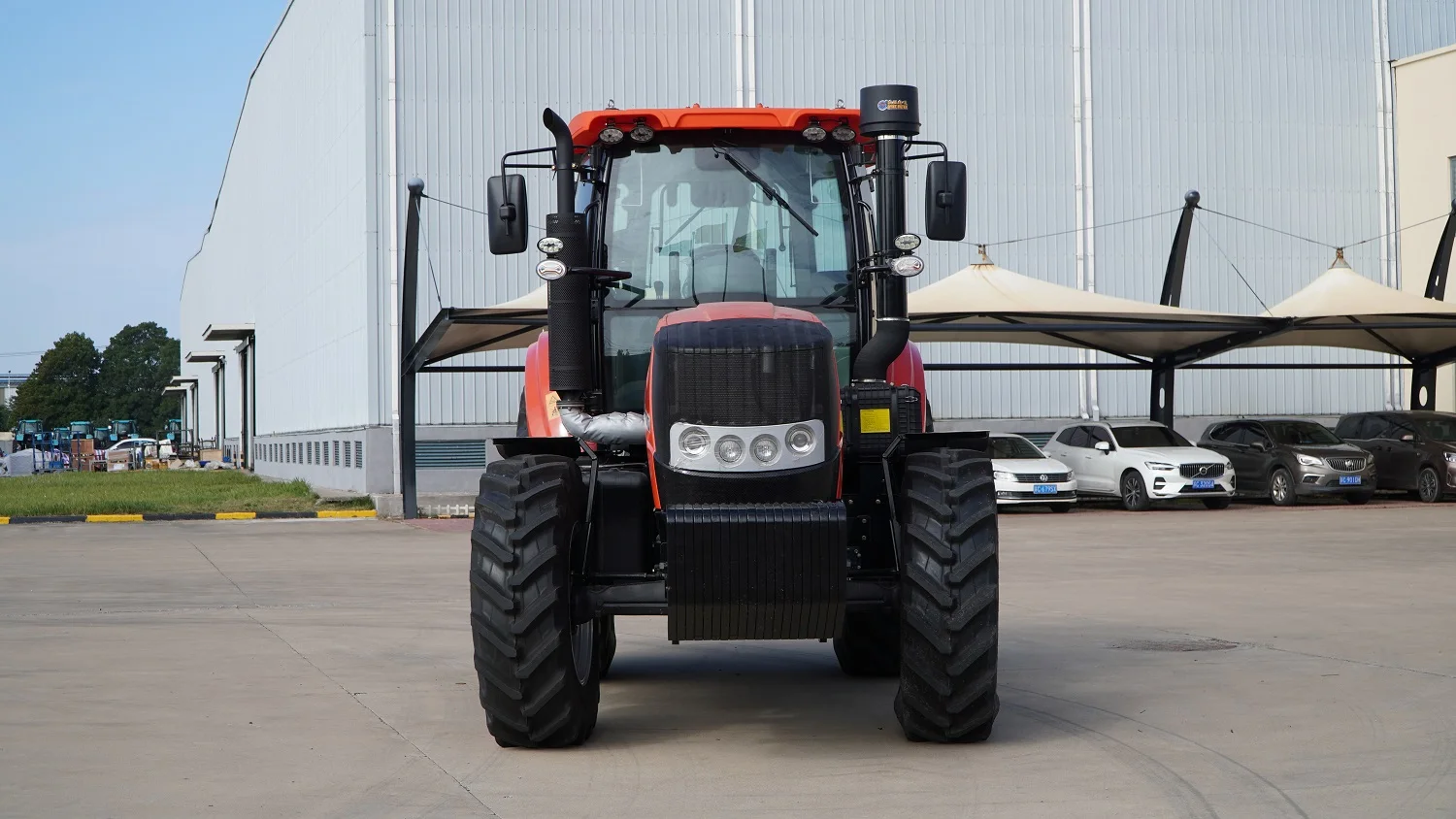

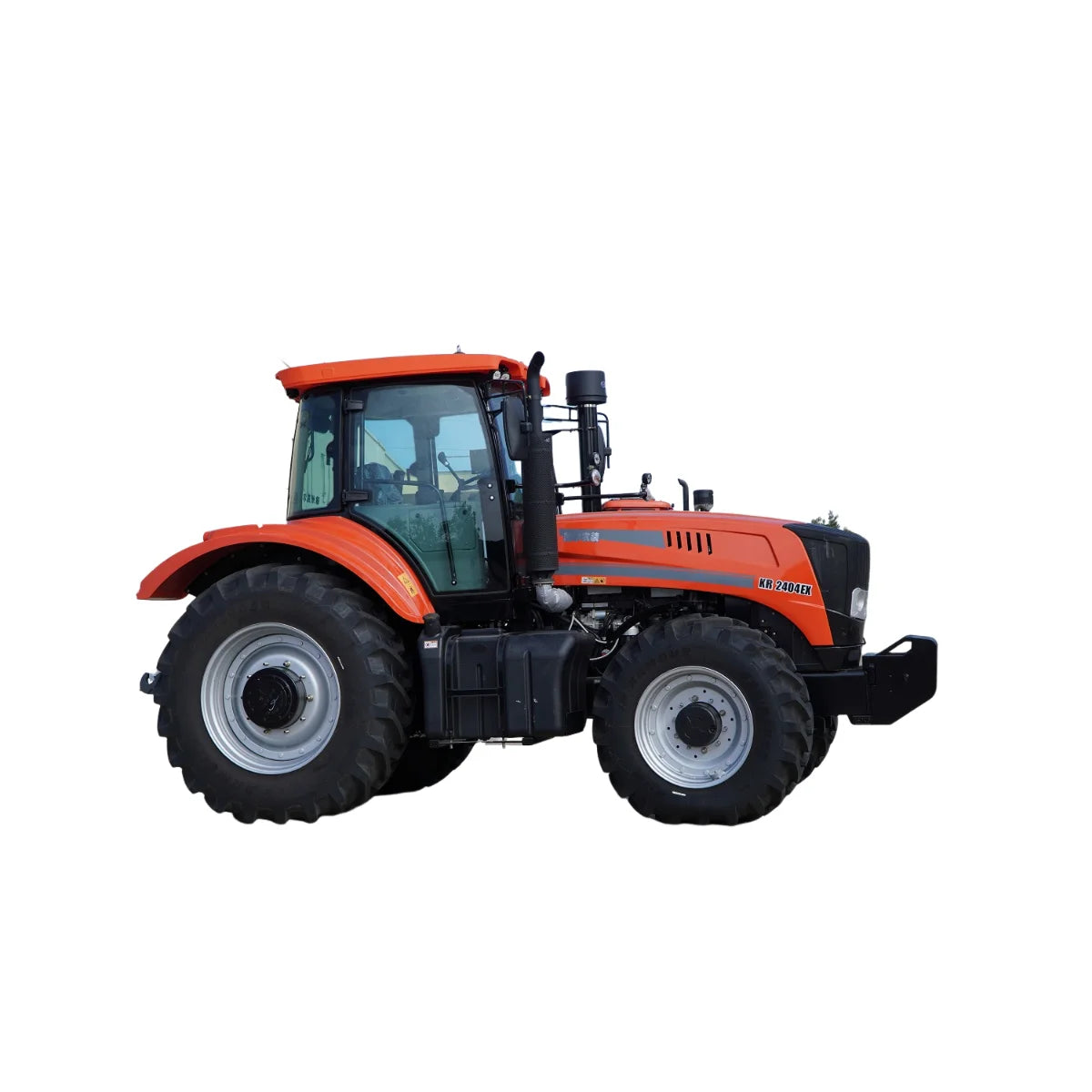

KR2404EX

A powerful, reliable, user-friendly and comfortable tractor. Designed for agricultural work on large fields. It is widely used in all kinds of cultivation, plantation, transportation etc.

Advantages and highlights:

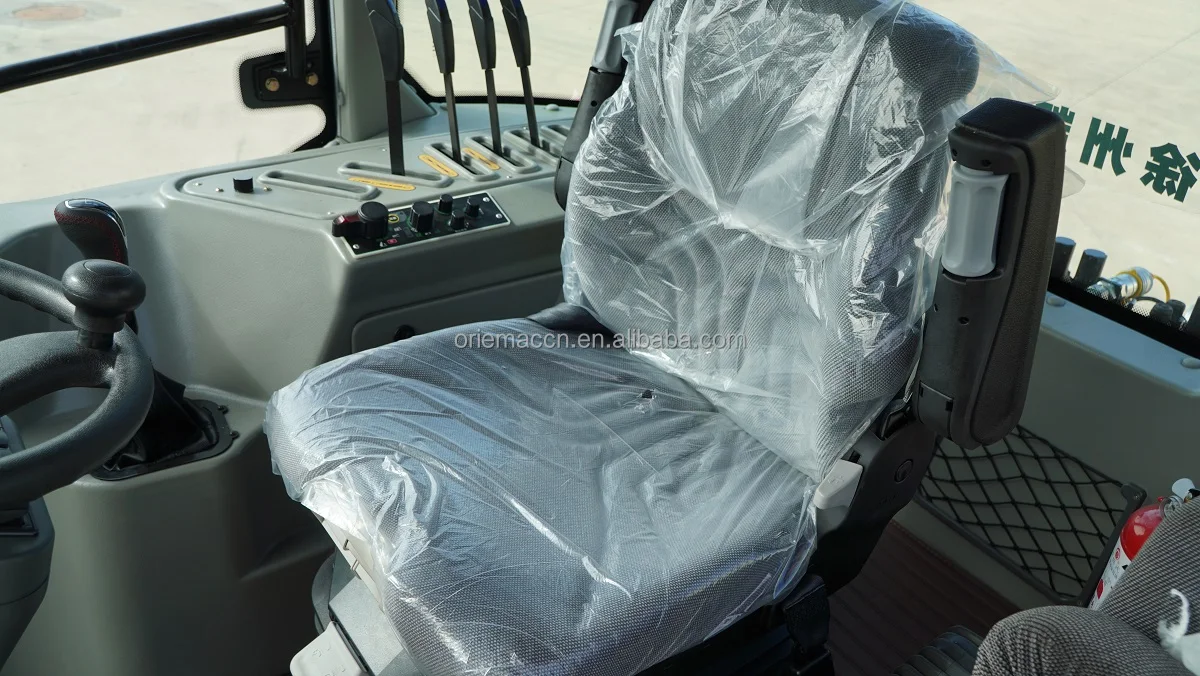

Six cylinder engine, turbocharger, inter-cooling, rated power: 177kw, fully enclosed cab with front/rear camera, air heater and air conditioner,

transmission: 16F+4Rgears, synchronizershift, unit frame chassis, driving system with modularization structure, international brand front axle, construction machinery rear axle, wide tyre, caliper disc brake, replaceable PTO shaft, PTO shaft

rotation speed: 540/1000r/min, fully hydraulic front wheel steering, four groups hydraulic output, plough depth control method by position, floating control, and international brand suspension mechanism of rear-mounted Category III.

Option:

Optional Hydraulic system: Closed-center, pressure/flow compensated system with load sensing, Variable piston pump, Up to 130L/min. displacement in total, 20.5Mpa. 4 pairs mechanical controlled proportional valves , 2 pairs flow rate adjustable, Max.100L/min. for single pair valves, floating position, neutral position lock, electrical lifting control both inside cabin and by rear fender button. return port, Pneumatic output line and electrical socket.

Contact way

Jane

Sales Manager

Whatsapp/Tel: 0086 152 4264 2683

Email: jane@oriemac.com

PRODUCT SPECIFICATIONS

Model				KR2404EX
Engine	Rated Power/speed	kW(HP)/r/min	177(240)/2200
		Engine Displacement	(L)	8.82
Drive Type			/	4×4
Dimension(Length/Width/Height)			mm	5675/2645/3100
Wheel Base			mm	2880
Track(Front wheel)			mm	2050-2250
Track(Rear wheel)			mm	2000-2398
Min. Ground Clearance			mm	480
Min. Turning Radius			mm	7000
Machine Weight			kg	9352
Rated Traction Force			kN	49
Max. Traction Force			kN	73
No. of gears				16F+4R
Forward Gear	Speed	km/h	3-34
Reverse Gear	Speed	km/h	4-20
Tyre	Front Tires	/	540/65R28
		Rear Tires	/	650/65R38
Power-output shaft Type			/	Rear position, independent
power-output shaft rated Speed			r/min	540/1000
Max. Lifting Force			kN	63
Fuel tank capacity			(L)	410
Hydraulic tank capacity			(L)	80
Front ballast			Kg	1000
Front wheel ballast			Kg	200
Rear wheel balast			Kg	400
Voltage			(V)	12

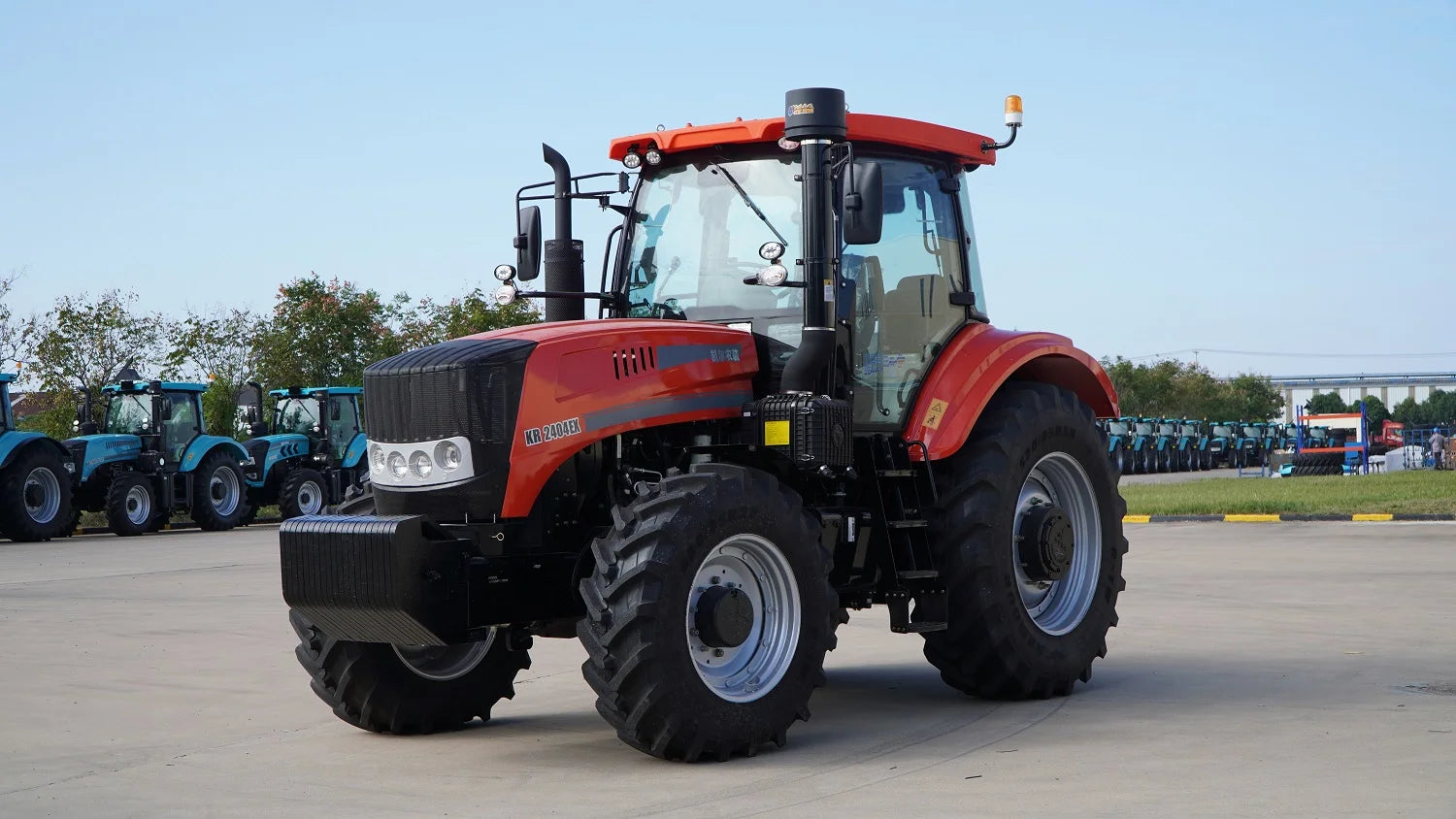

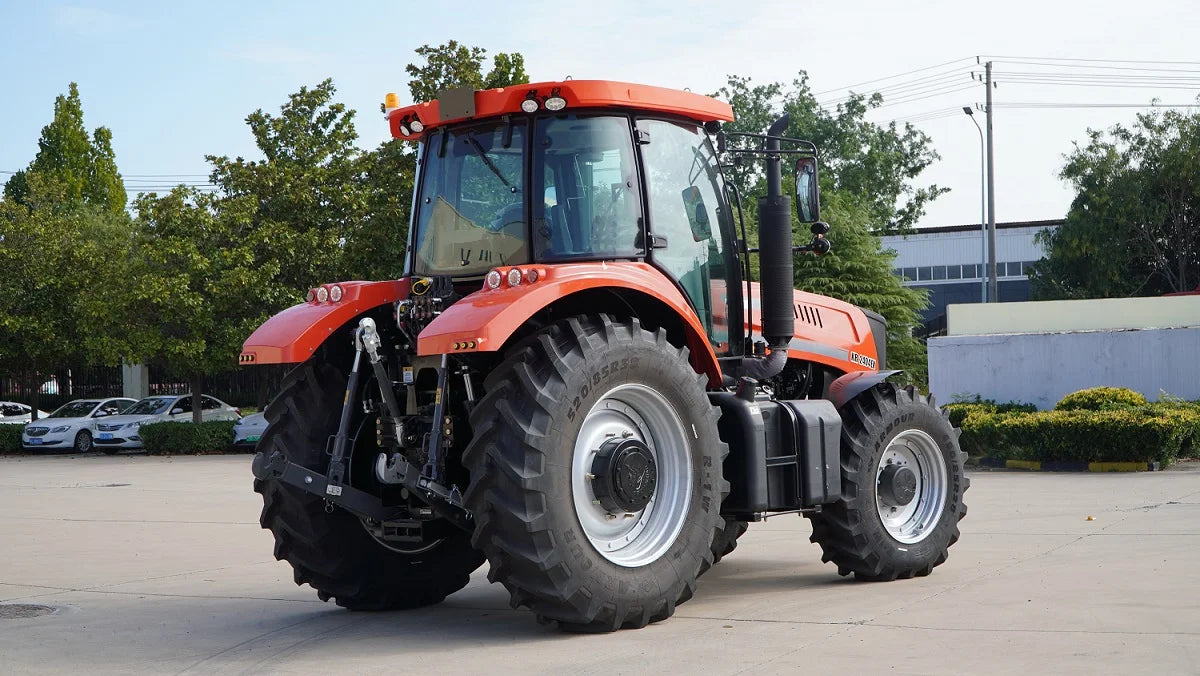

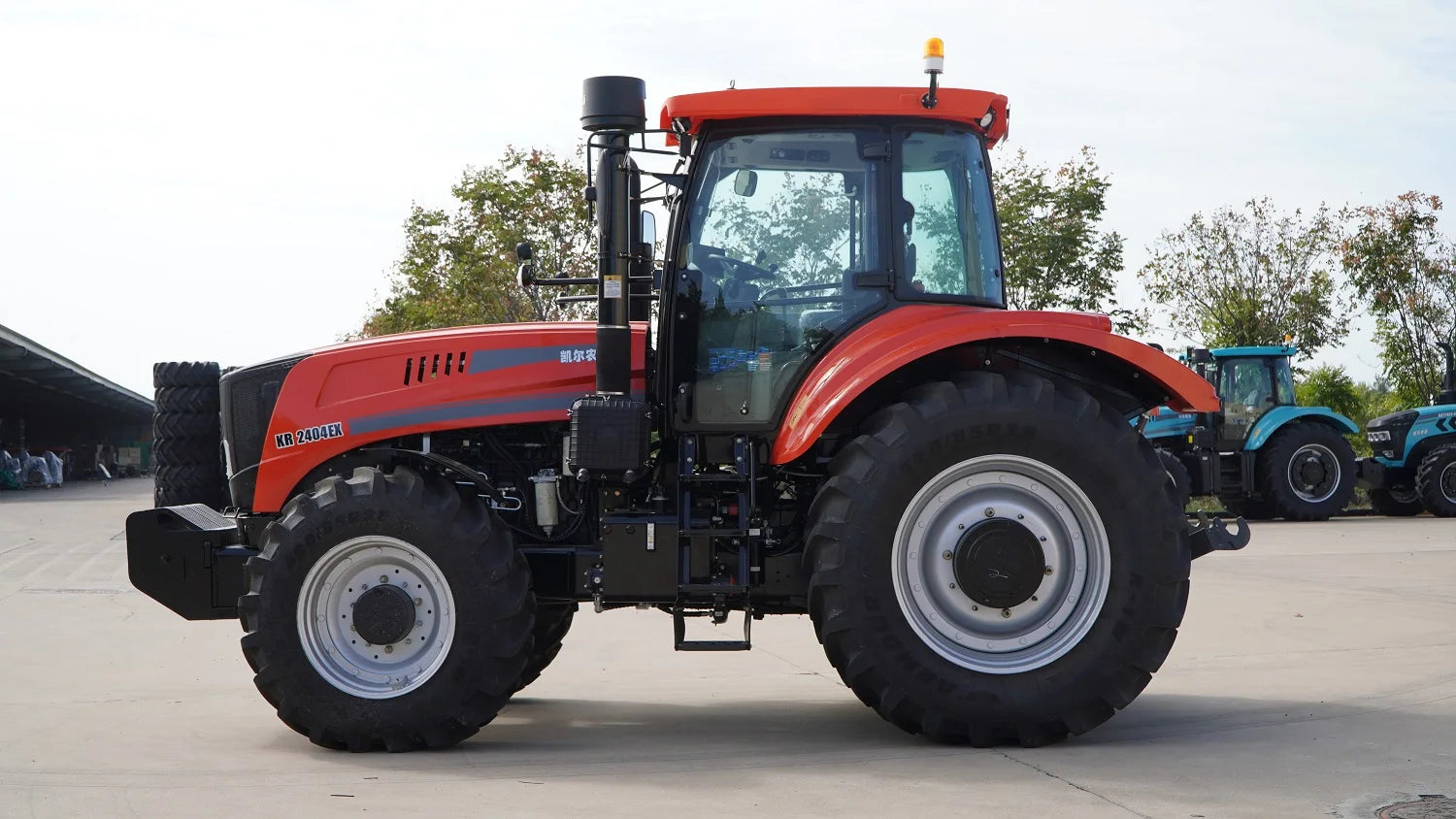

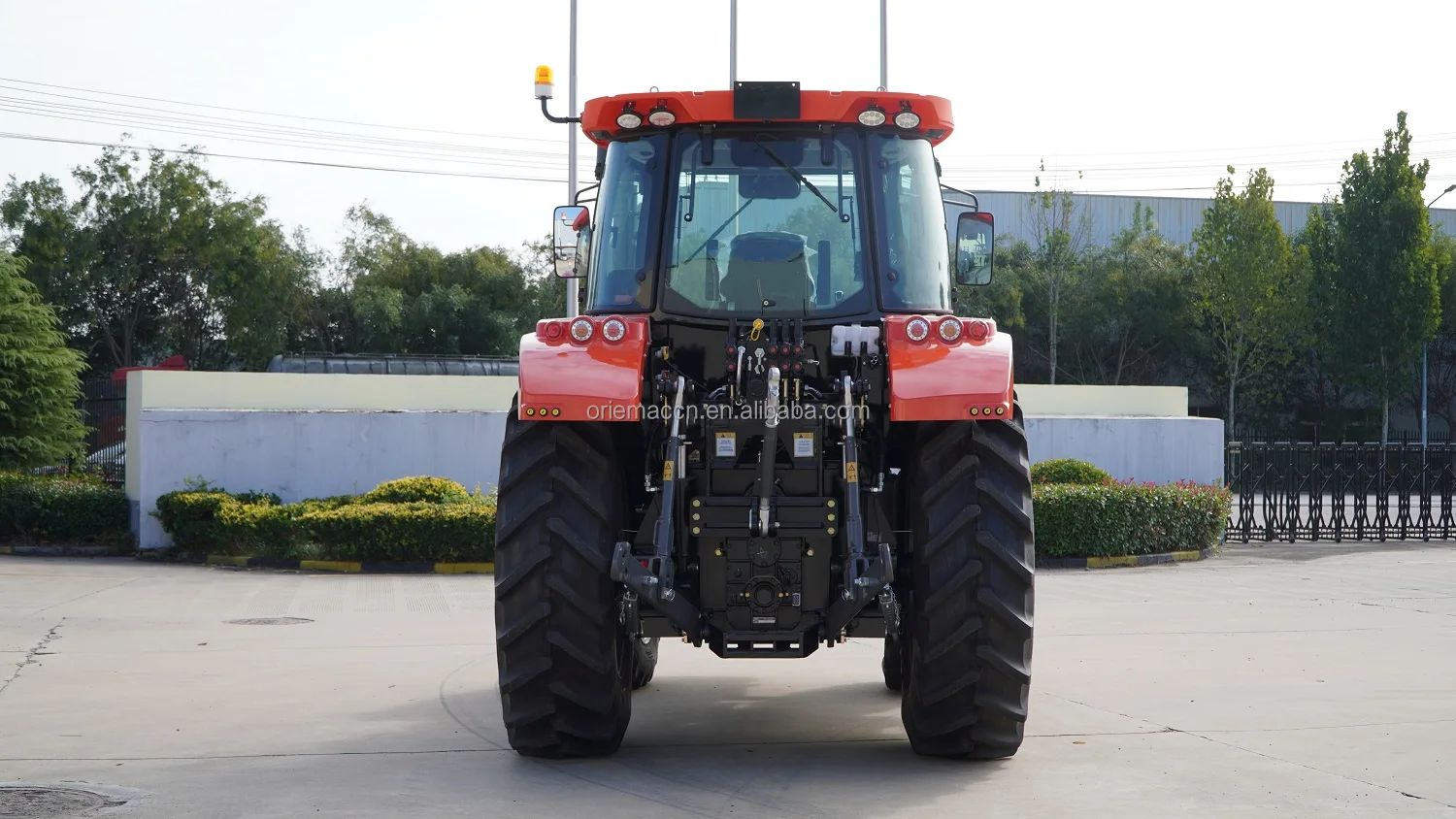

Product Show
