SPECIFICATIONS

Battery Energy(kWh): 56.2

Battery type: Lithium Iron Phophate

Body structure: 5-door 5-seater SUV

Braking System: Front Ventilation Disc Rear Disc

Brand Name: Leapmotor

Color: Black/silver/dark gray/gray/white

Driving Type: Rear Rear Wheel Driver

Energy type: pure electric

Length x Width x Height (mm): 4515*1885*1655

Max Speed: 160km/h

NEDC Max. Range: /

Place of Origin: Shanghai, China

Product name: 4 Wheel Electric Car

Steering: Left Hand Driver

Total Motor Power(kW): 132

Total Motor Torque(N.m): 175

Product Description

Specification

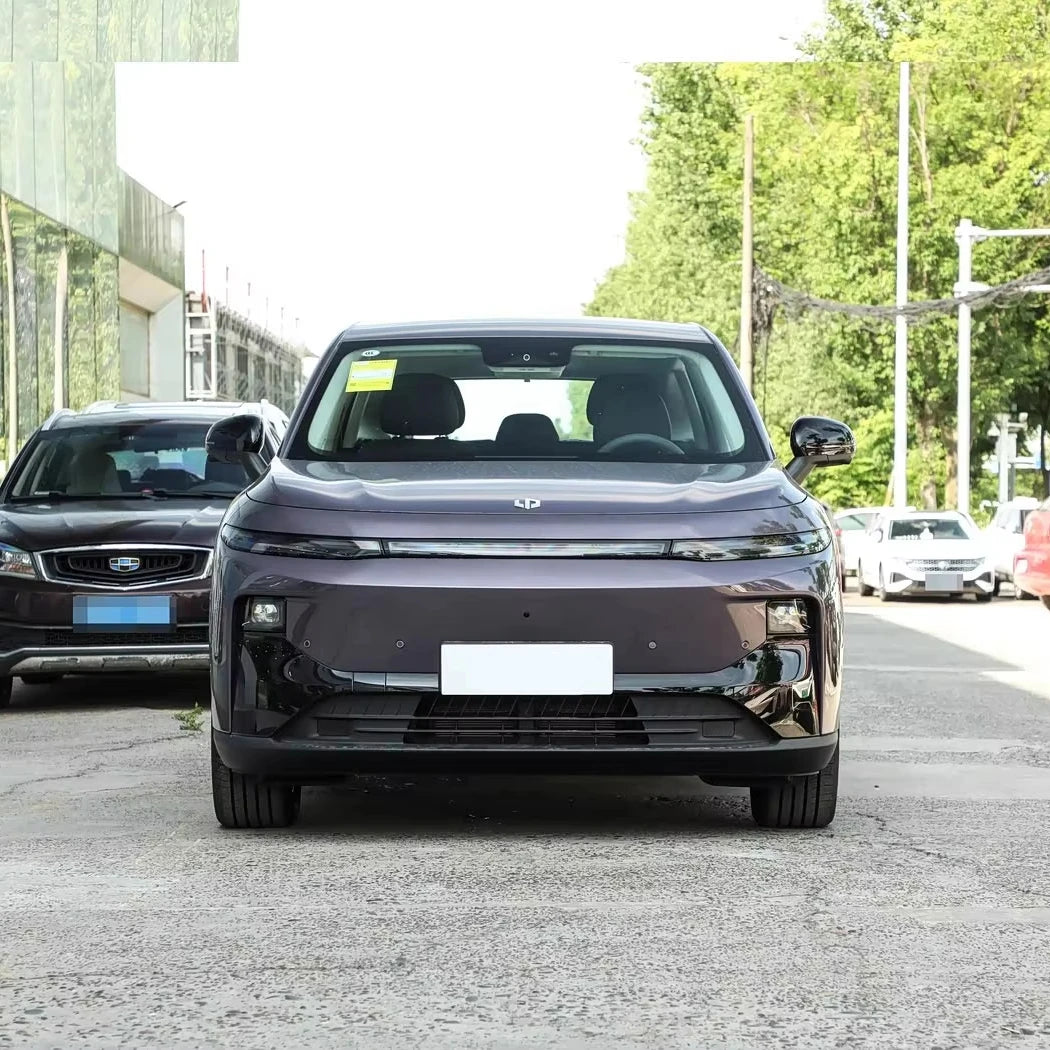

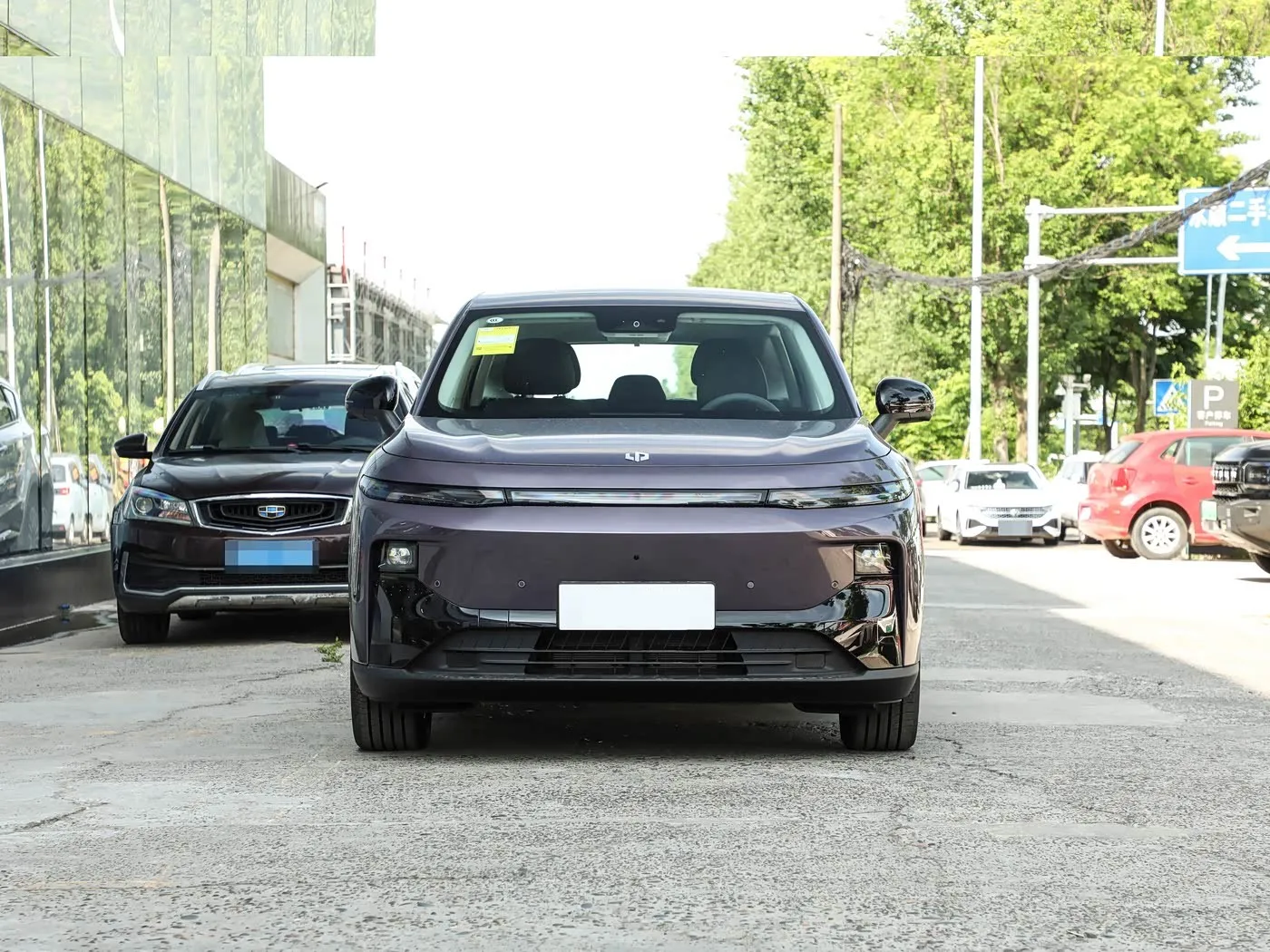

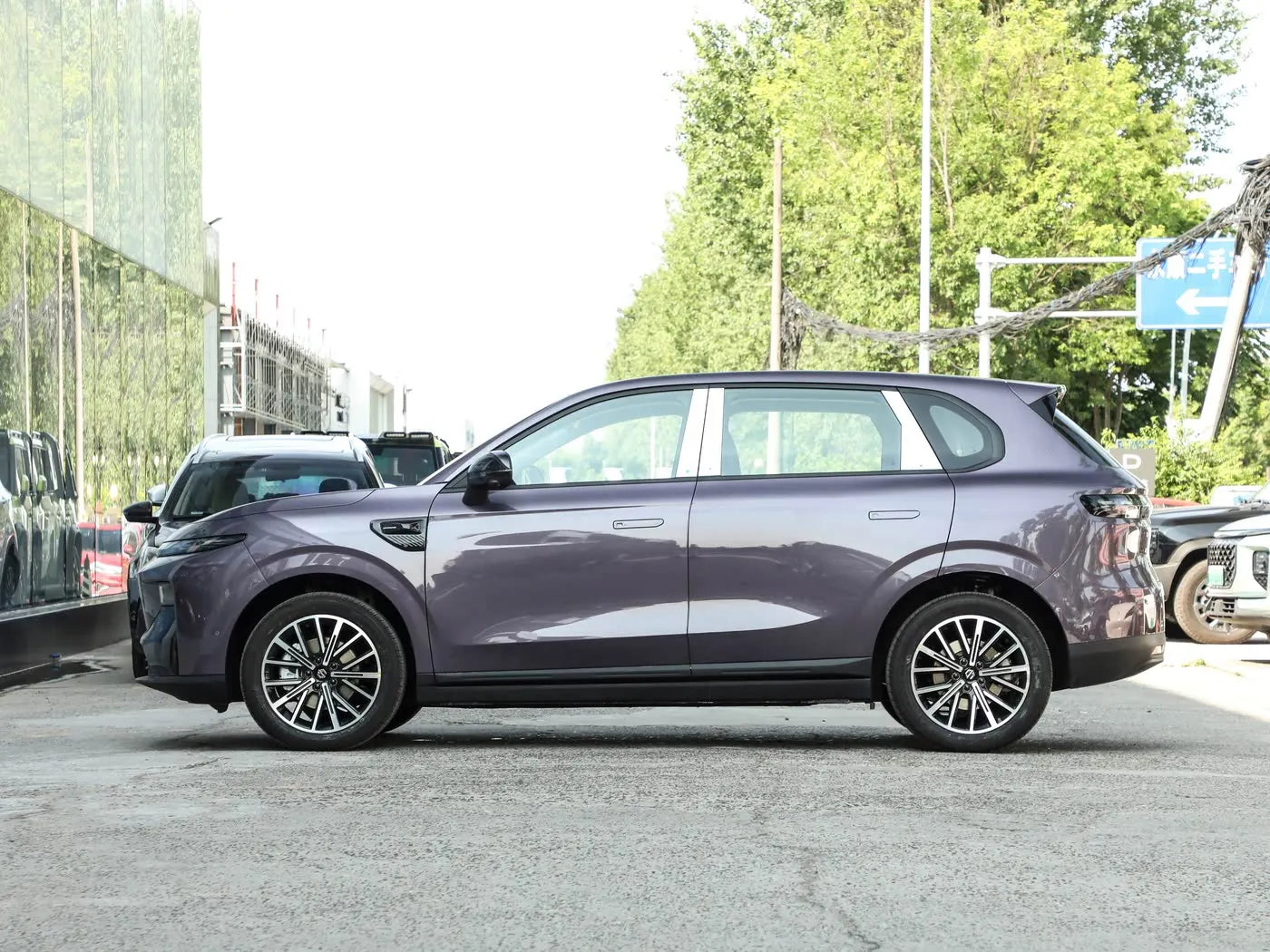

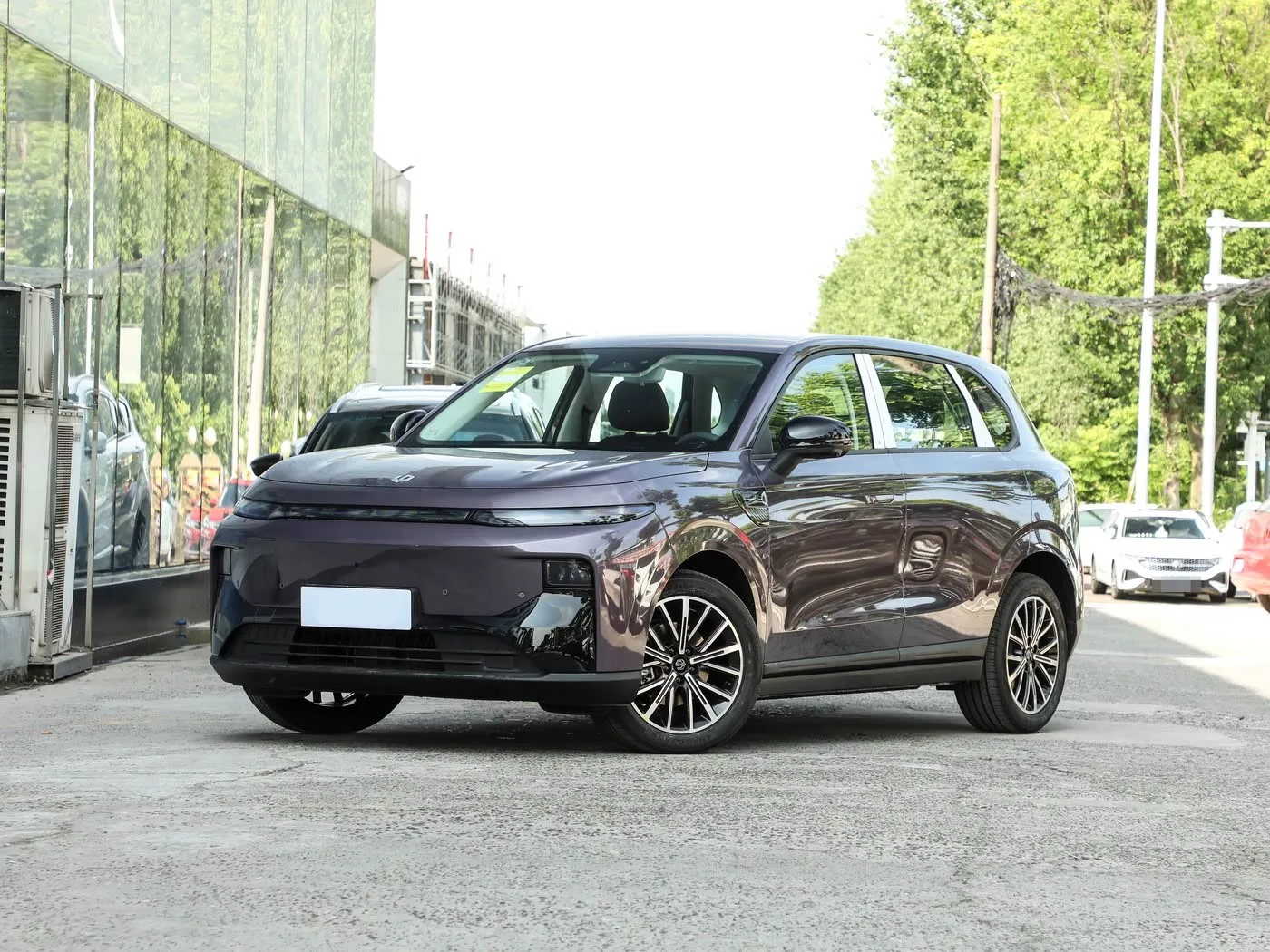

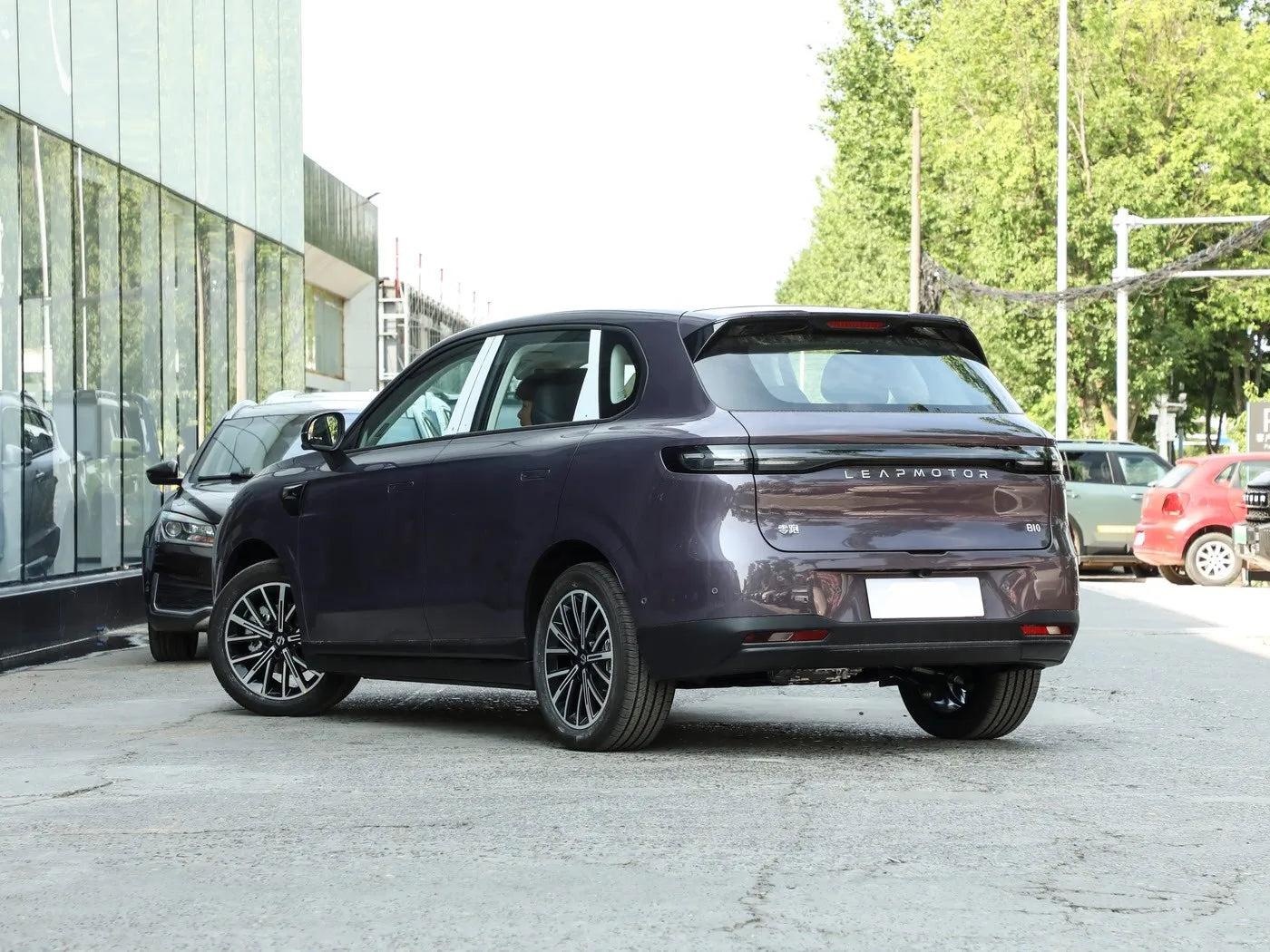

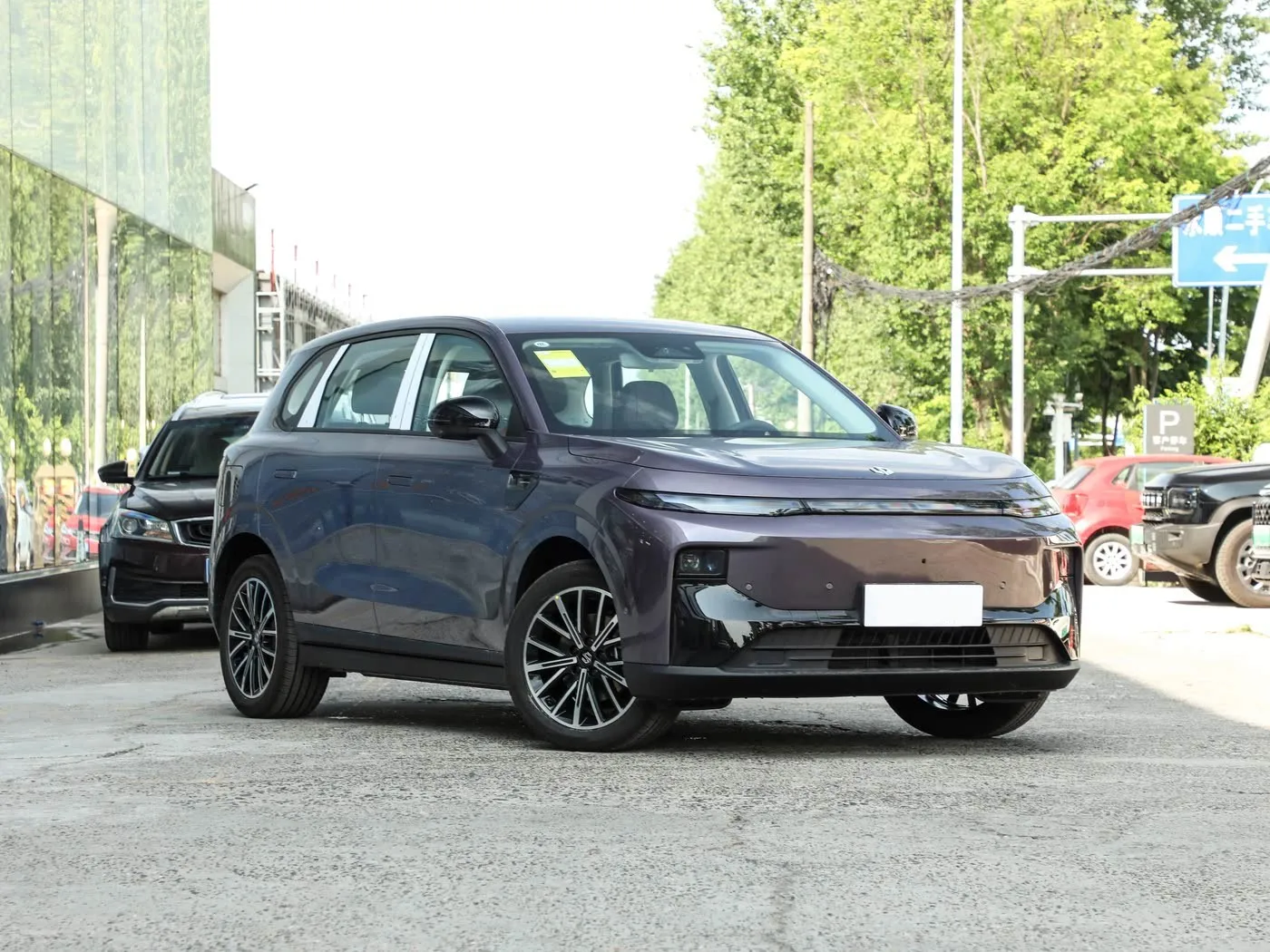

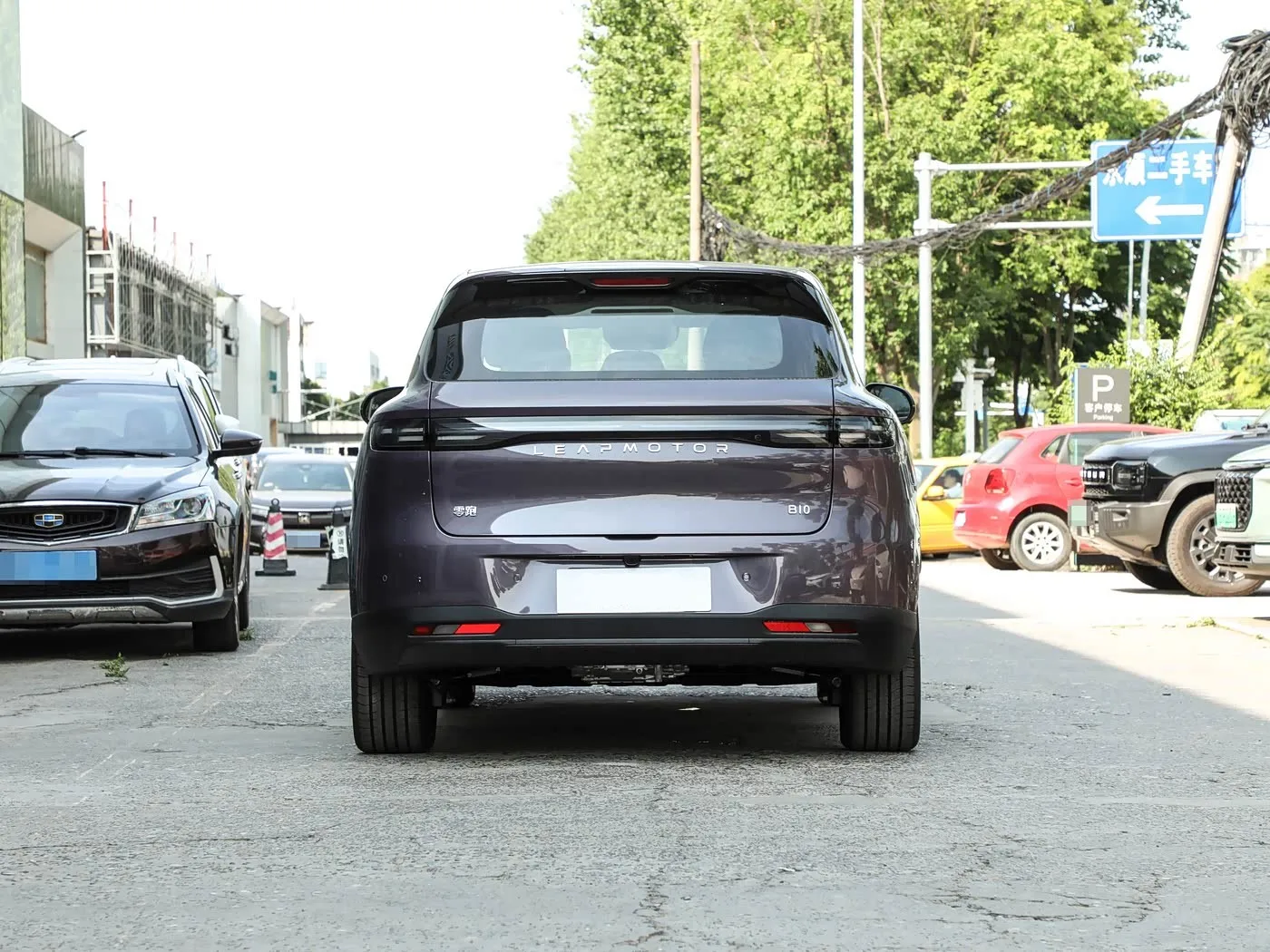

Model	2025 Leapmotor B10 510 Comfort Edition
Manufacturers	Leapmotor
level	compact SUV
Energy type	pure electric
Launch date	2025.04
CLTC pure electric range (km)	510
Battery fast charging time (hours)	0.32
Battery slow charging time (hours)	4.2
Battery fast charging range (%)	30-80
Battery slow charge range (%)	30-80
Maximum power (kW)	132
Maximum torque (N路m)	175
Body structure	5-door 5-seater SUV
Electric motor (Ps)	180
Length * Width * Height (mm)	4515*1885*1655
Official 0-100km/h acceleration (s)	9.3
Maximum speed (km/h)	160
Electricity-equivalent fuel consumption (L/100km)	1.43
Curb weight (kg)	1670
Maximum load capacity (kg)	2045
Length (mm)	4515
Width (mm)	1885
Height (mm)	1655
Wheelbase (mm)	2735
Front track width (mm)	1615
Rear track width (mm)	1605
Minimum ground clearance under no-load conditions (mm)	170
Approach angle (掳)	19
Departure angle (掳)	twenty four
Minimum turning radius (m)	5.25
Body structure	SUV
Car door opening method	Hinged door
Trunk volume (L)	420-1415
Rear motor model	TZ180XS101
Motor type	Permanent magnet/synchronous
Total power of electric motors (kW)	132
Total horsepower of electric motors (Ps)	180
Total torque of the electric motor (N路m)	175
Maximum power of the rear motor (kW)	132
Maximum torque of the rear motor (N路m)	175
Number of drive motors	single motor
Motor layout	Rear
Battery Type	Lithium iron phosphate batteries
Battery cell brands	Sunwoda Zhengli Xinneng.
Battery cooling method	Liquid cooling
CLTC pure electric range (km)	510
Battery energy (kWh)	56.2
Energy consumption per 100 kilometers (kWh/100km)	12.3
Fast charging function	support
Battery fast charging time (hours)	0.32
Battery slow charging time (hours)	4.2
Battery fast charging range (%)	30-80
Battery slow charge range (%)	30-80
slow charging port location	right rear side of the car
Fast charging port location	right rear side of the car
Abbreviation	Electric vehicle single-speed gearbox
Number of gears	1
Transmission type	Fixed gear ratio gearbox
driving method	Rear-engine, rear-wheel drive
Front suspension type	MacPherson independent suspension
Rear suspension type	Multi-link independent suspension
Assistance Type	Electric Assist
Vehicle body structure	Load-bearing
Front brake type	Ventilation disc
Rear brake type	disc
Parking brake type	Electronic parking brake

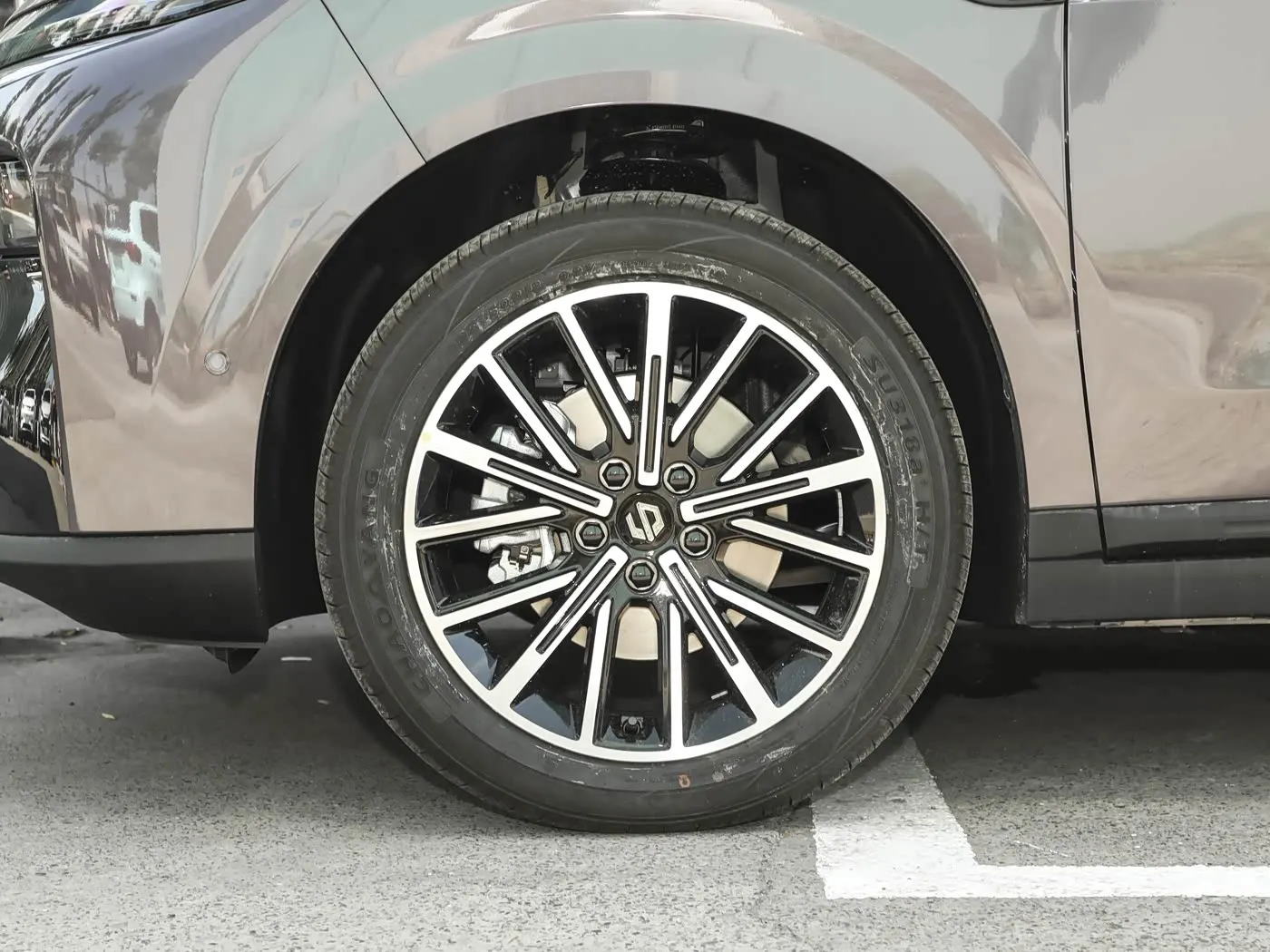

Front tire specifications	225/50 R18
Rear tire specifications	235/50 R18
