SPECIFICATIONS

After-sales Service Provided: Onsite Installation,Video Technical Support,Overseas Call Centers,Online support

Brand Name: SINOTRUK

Capacity (Load): 21 - 30T

Condition: New

Dimensions (L x W x H) (mm): 11700 *2500*3400MM

Drive Wheel: 6X4

Driving Type: 6*4 RHD /LHD optional

Engine Capacity: > 8L,9.726L

Forward Shift Number: 10

Fuel Tank Capacity: 400-500L

Fuel Type: Diesel

Gross Vehicle Weight: 13500kgs

Horsepower: 351 - 450hp

Maximum Torque(Nm): 1500-2000Nm

Place of Origin: Shandong, China

Product name: Oil Transport Truck

Storage: Oil

Tank Volume: 15001 - 30000L

Transmission Type: Manual

Volume: 15-30cbm

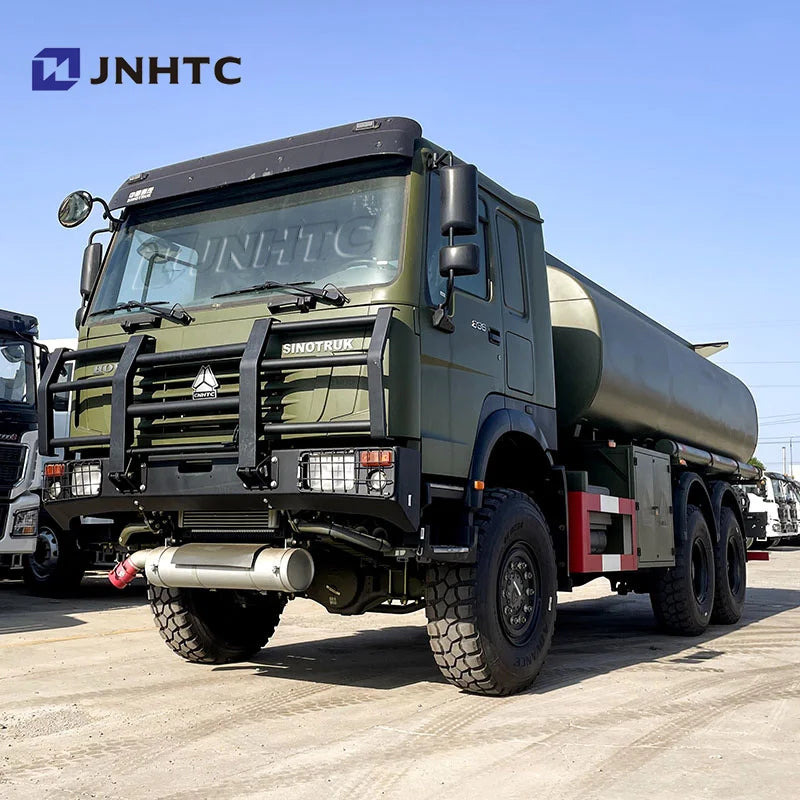

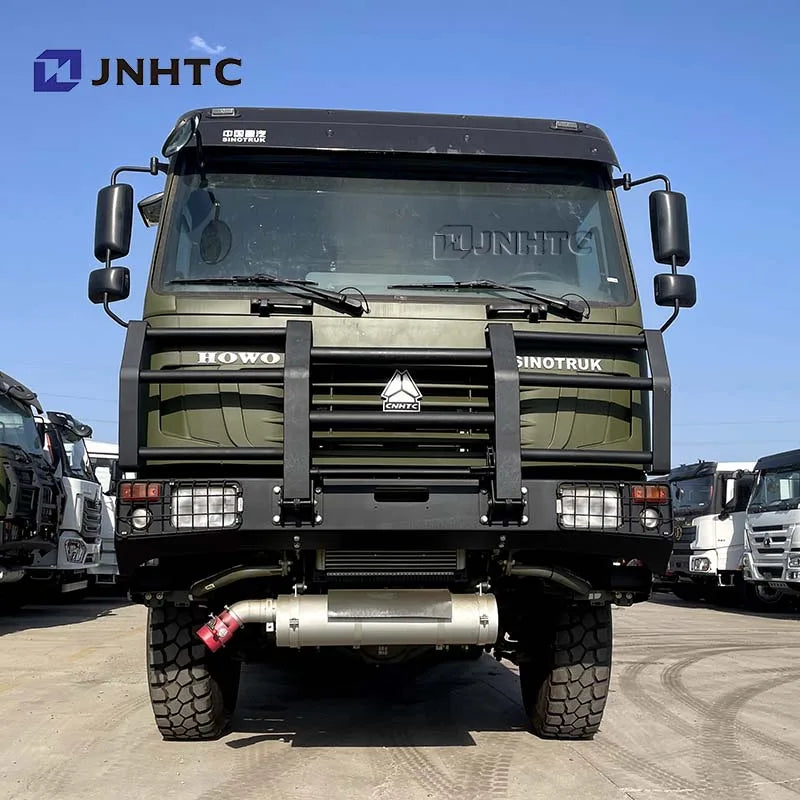

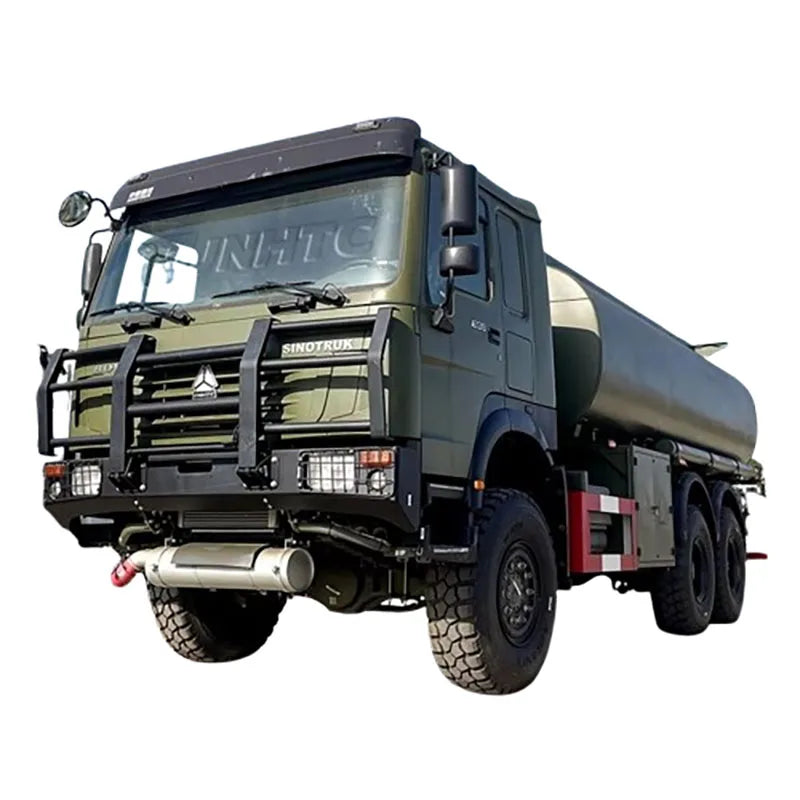

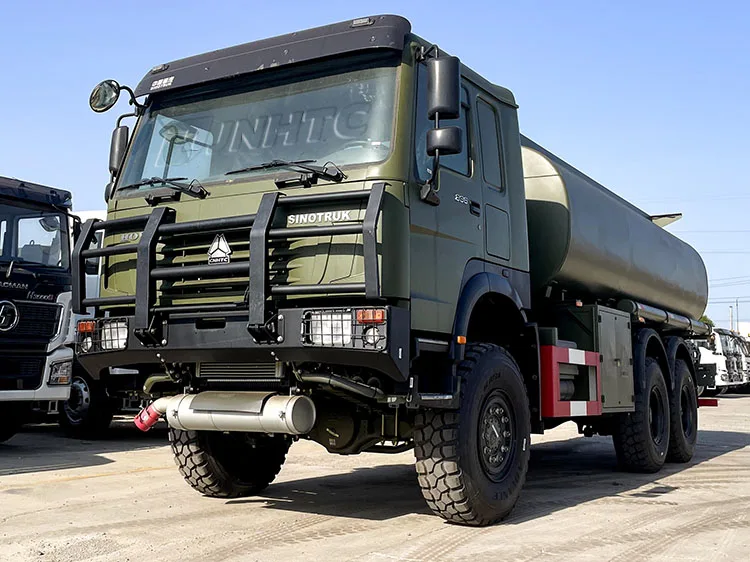

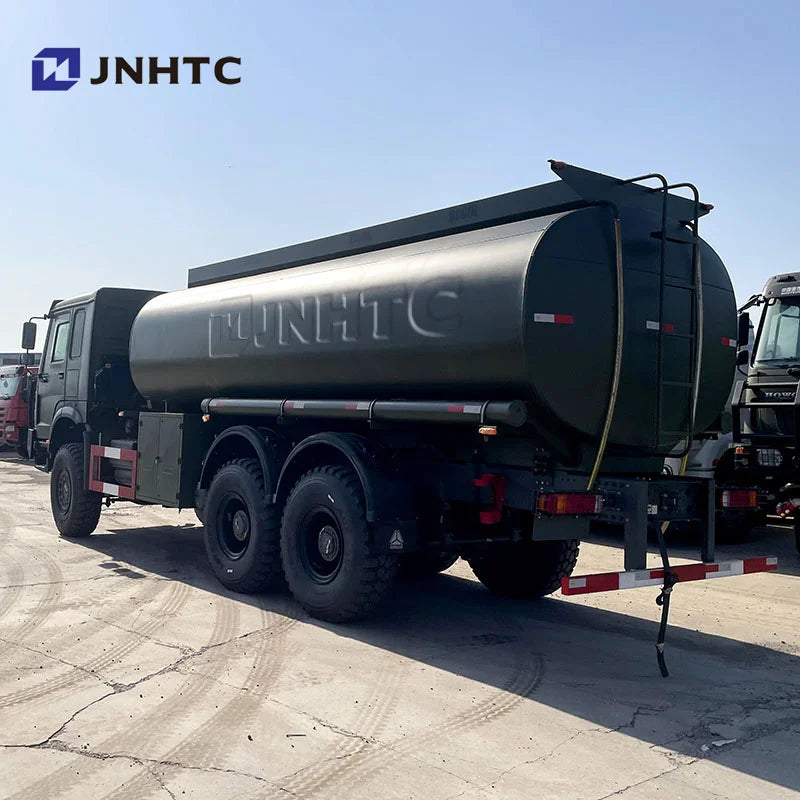

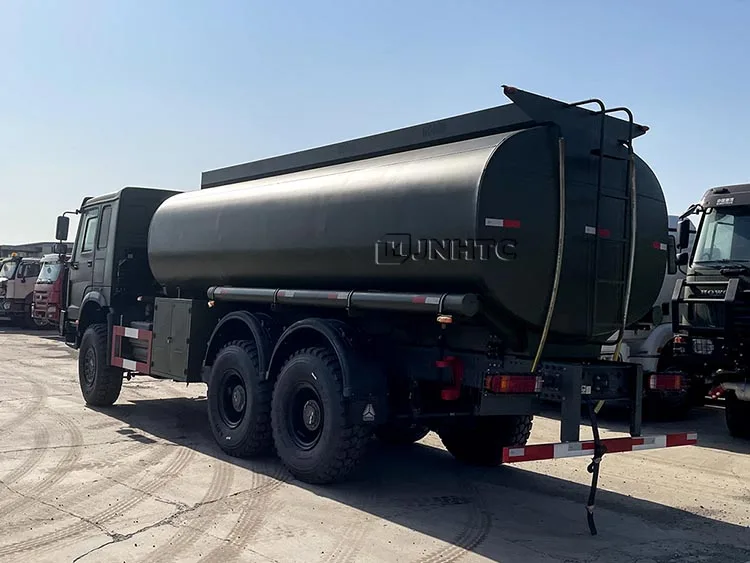

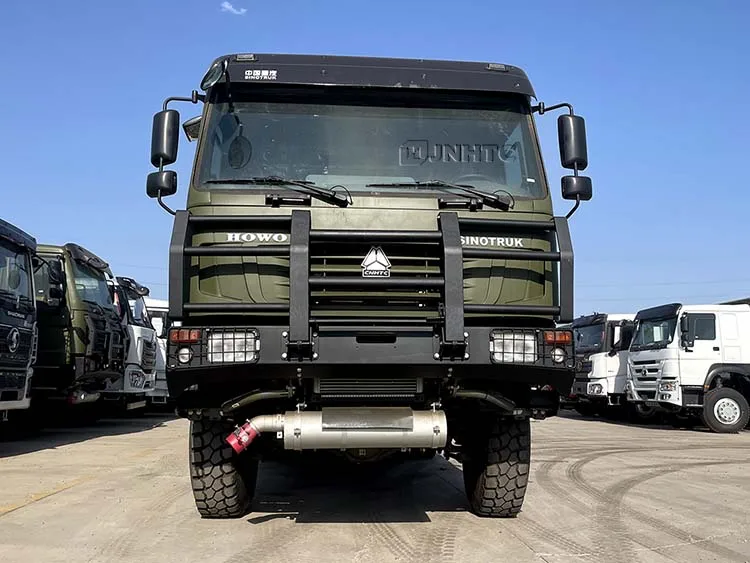

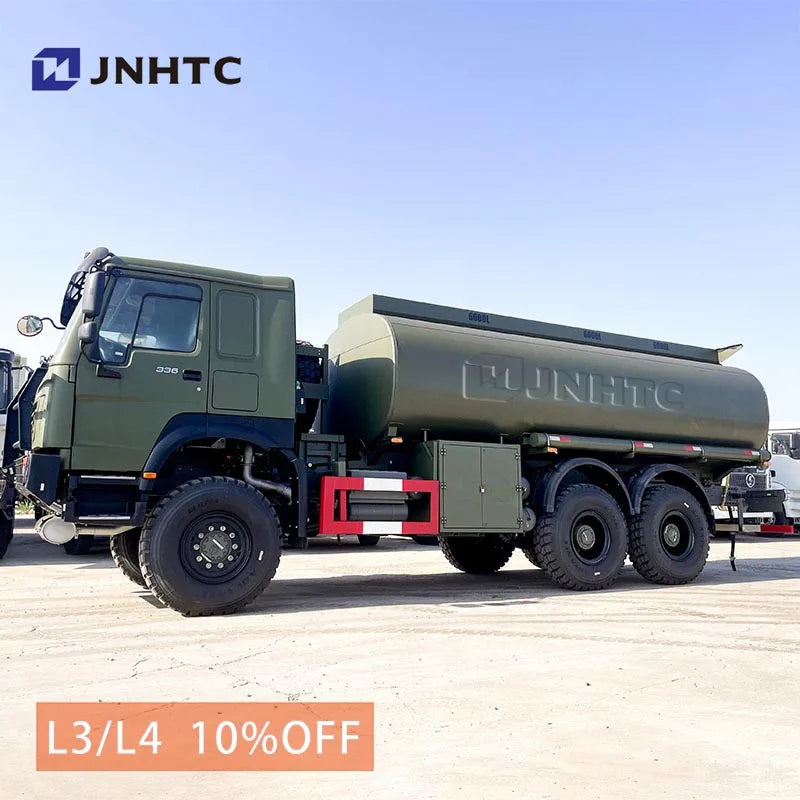

Oil Tank Truck

An Oil Tank Truck, also known as a fuel tanker truck, is a specialized vehicle designed for transporting liquid fuels such as
gasoline, diesel, or petroleum over long distances. These trucks typically feature large cylindrical tanks mounted on the chassis,capable of holding substantial quantities of fuel.
The tanks are constructed from sturdy materials like aluminum or steel to ensure durability and safety during transport. Oil TankTrucks are equipped with pumps and hoses for efficient loading and unloading of fuel at depots, gas stations, or other designatedlocations.
Due to the hazardous nature of the cargo, strict safety regulations govern the operation and maintenance of Oil Tank Trucks.
Drivers are trained in handling procedures to prevent accidents and ensure environmental protection.
In summary, Oil Tank Trucks play a crucial role in the distribution of liquid fuels, providing a reliable means of transporting
essential energy resources to various destinations efficiently and safely.

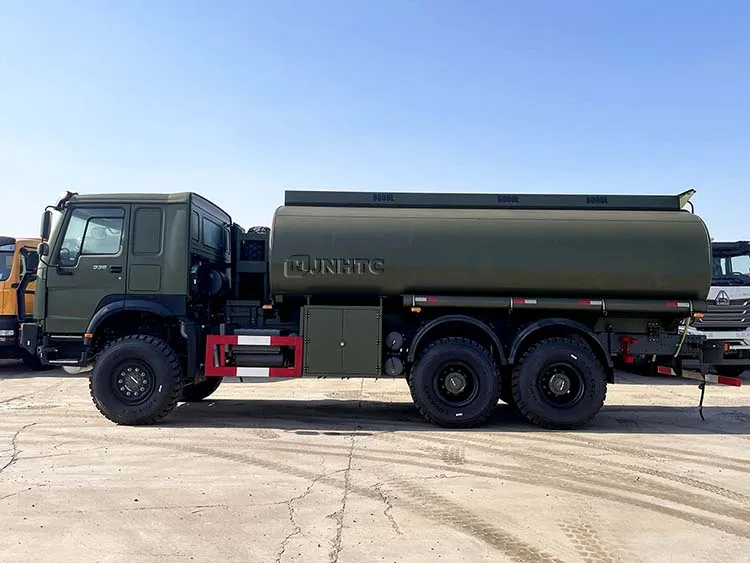

Product Name	SINOTRUK HOWO 6X4 Oil Tank Truck 20CBM
Driving Type	LHD (RHD is optional)
Cabin	HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine	Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, Euro 2, 371 HP 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L
Transmission	HW19710, 10F & 2R speeds , with PTO
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle	HF9,1x9000 KGS Steering with double T-cross section beam

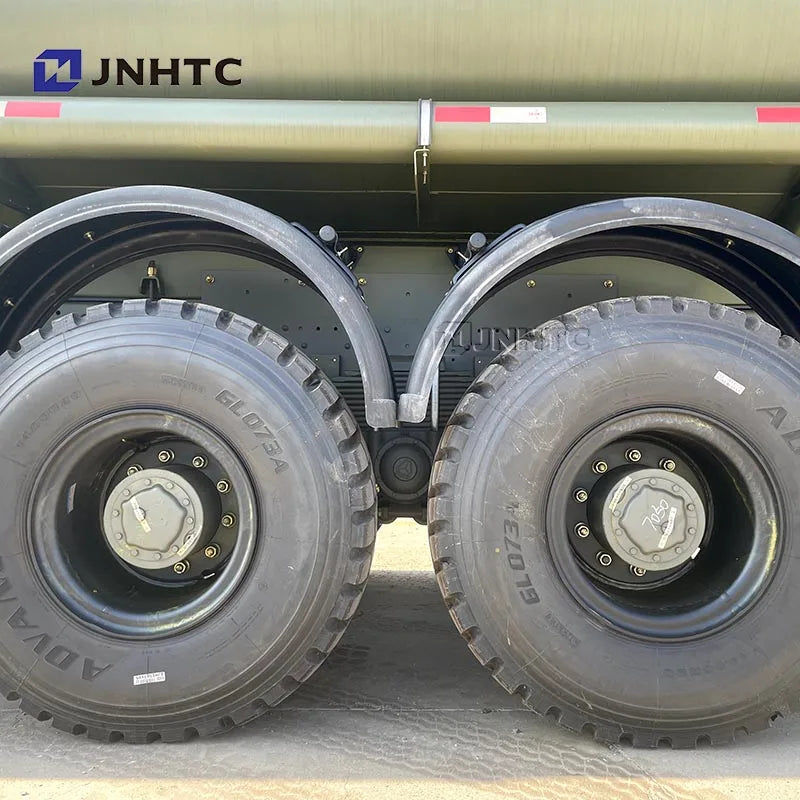

Rear Axle	HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:4.8 / 5.73
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm,reinforced Sub-frame all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	295/80R22.5, tubeless tyres with one spare tyre, 12.00R20 radial tire for option
Fuel Tank	400L
Oil Tank Body	20 Cubic Meters, can be customized
