SPECIFICATIONS

After-sales Service Provided: Video Technical Support,Online support

Air Conditioner: Manual

Approach Angle: 15°-20°

Brand Name: Sinotruck

Cab: HW76,single bed

Capacity (Load): 21 - 30T

Condition: New

Cylinders: 6

Drive Wheel: 6X4

Driver's Seat: Air suspension

Emission Standard: Euro 2

Engine Brand: SINOTRUCK

Engine Capacity: > 8L

Engine model: WD615.47

Forward Shift Number: 10

Front Axle: HF9

Fuel Tank Capacity: 300-400L

Fuel Tank Material: Aluminium alloy

Fuel Type: Diesel

Gear Box Brand: SINOTRUCK

Gross Vehicle Weight: 20001-25000 kg

Horsepower: 351 - 450hp

Market Segement: Mining transportation

Maximum Torque(Nm): 1500-2000Nm

Maximum output: 400hp

Passengers: 2

Place of Origin: China

Rear Axle: HC16

Rear Camera: None

Reverse Shift Number: 2

Seat Rows: Single Row

Size: 7800*2500*1500mm

Steering: Left

Tire Number: 13

Touch Screen: None

Transmission: HW19710, 10 forward and 2 reverse

Transmission Type: Manual

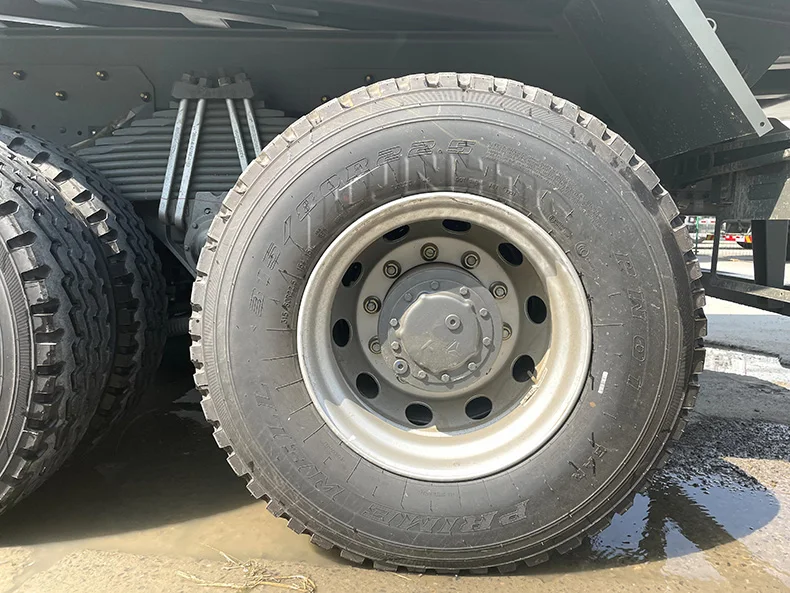

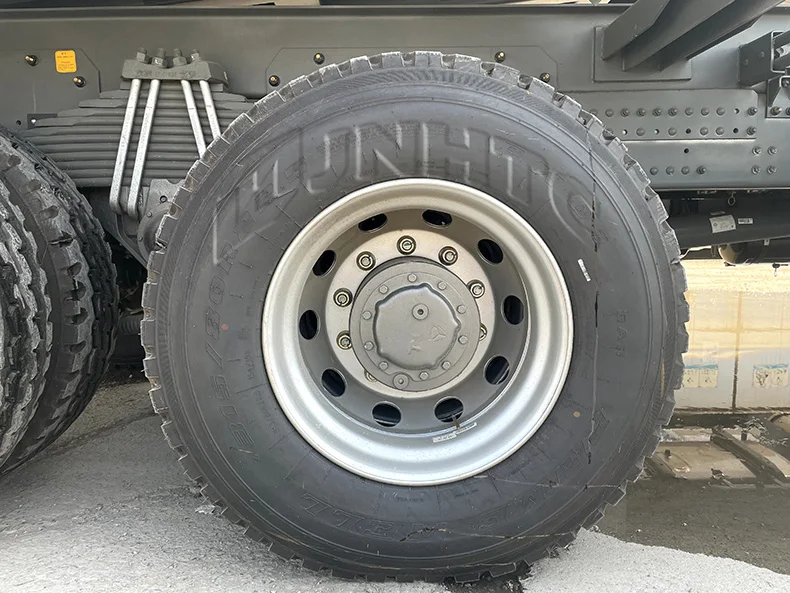

Tyres: 12.00R20

capacity: 20 cbm

Parameter：
Brand Name：	SINOTRUK-HOWO
Type：	heavy Truck（6X4)
Condition：	New
Driving Style：	left
Color：	white

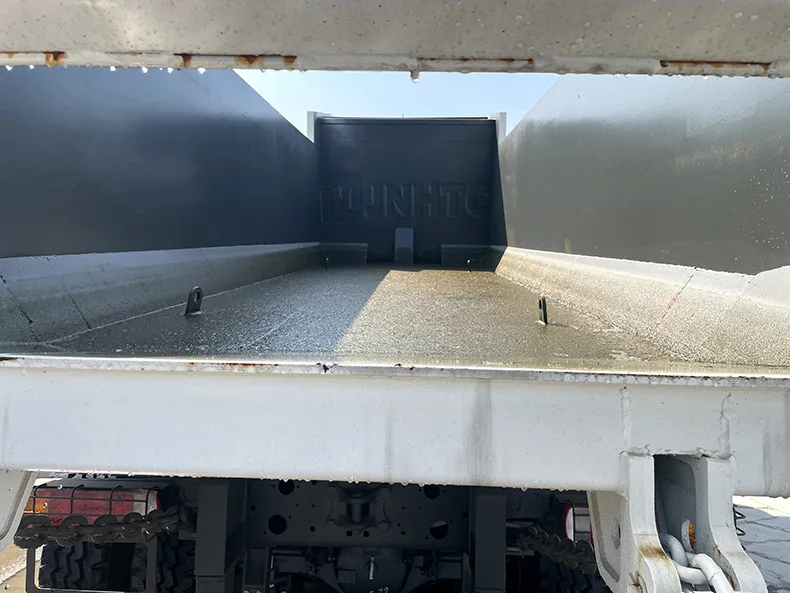

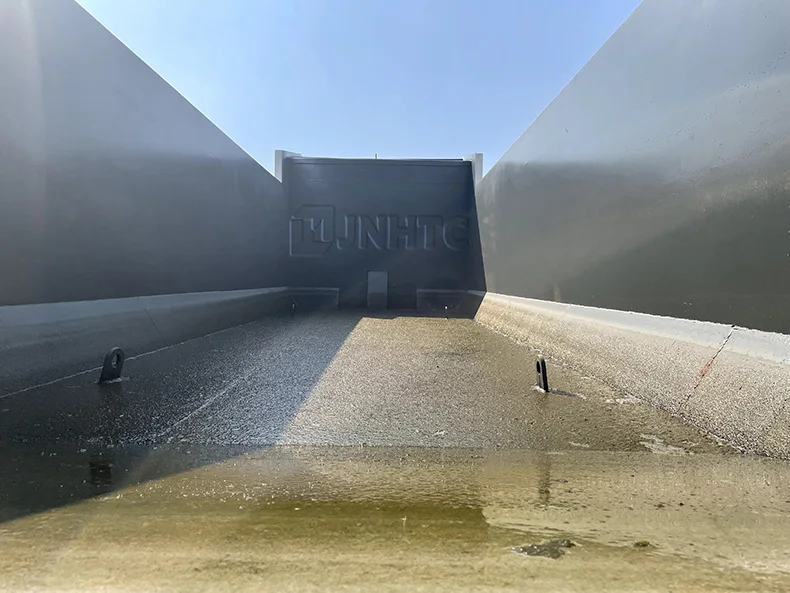

Cargo(Lx W x H)(unloaded)(mm)	7800x2500x1500mm（Other sizes are optional）
Cargo thickness(mm)	bottom 8mm, side 6mm（Other sizes are optional）
Wheel base (mm)	3800+1350
Loading Weight(kg)	21000-30000
Fuel Tank（Diesel）：	400 L
Emission standard：	EUR 2
Power：	371 hp
Controlmode：	MT
Clutch	Single- plate dry diaphragm spring clutch, diameter 430(B) mm, hydraulically operating with air assistance
Tyres	12.00-20

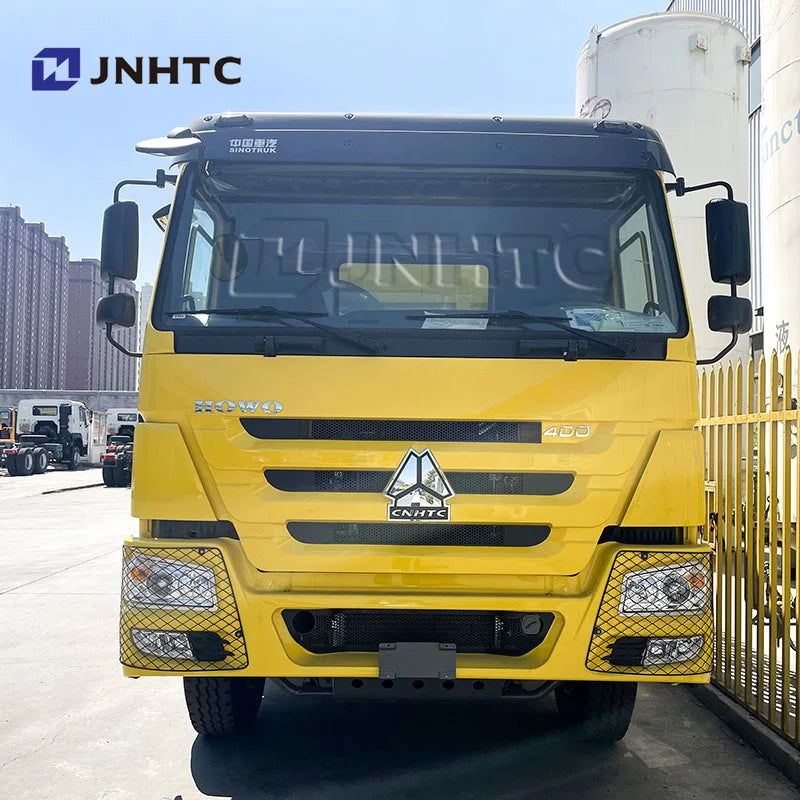

Cabin（with front bumper）：	HW76(Single bed)
Hydraulic lifting system：	front or middle（Option）
