SINOTRUK HOWO 6 Ton Dump Truck 5 Cubic Meter 4x2 Dump Truck 5 Ton Dump Truck
SINOTRUK HOWO 6 Ton Dump Truck 5 Cubic Meter 4x2 Dump Truck 5 Ton Dump Truck
Couldn't load pickup availability
SPECIFICATIONS
After-sales Service Provided: Video Technical Support
Air Conditioner: Manual
Brake system: hydraulic brake
Brand: SIONTRUK
Brand Name: SINOTRUK
Capacity (Load): 1 - 10t
Cargo Tank Dimension: 4200x2000x800
Cargo Tank length: 4.2-5.3m
Color: bule
Condition: New
Dimensions (L x W x H) (mm): 3600*2000*600
Drive Wheel: 4X2
Driver's Seat: Normal
Driving type: 4x2
Emission Standard: Euro 2
Engine: 110hp
Engine Brand: Weichai
Engine Capacity: < 4L
Forward Shift Number: 5
Fuel Tank Capacity: ≤100L
Fuel Tank Material: Aluminium alloy
Fuel Type: Diesel
Gear Box Brand: SINOTRUCK
Gross Vehicle Weight: 4000
Horsepower: 110hp
Market Segement: Urban construction muck transportation
Maximum Torque(Nm): ≤500Nm
Passengers: 2
Place of Origin: Shandong, China
Product name: SINOTRUK HOWO 6 ton dump truck 5 cbm howo 5 ton dump truck
Rear Camera: 360°
Reverse Shift Number: 1
Segement: Light truck
Steering: Left
Tire: 8.25-16
Tire Number: 6
Touch Screen: Yes
Transmission: 5forward&1 reverse
Transmission Type: Manual
SINOTRUK HOWO 6 ton dump truck 5 cubic meter 4x2 dump truck 5 ton dump truck

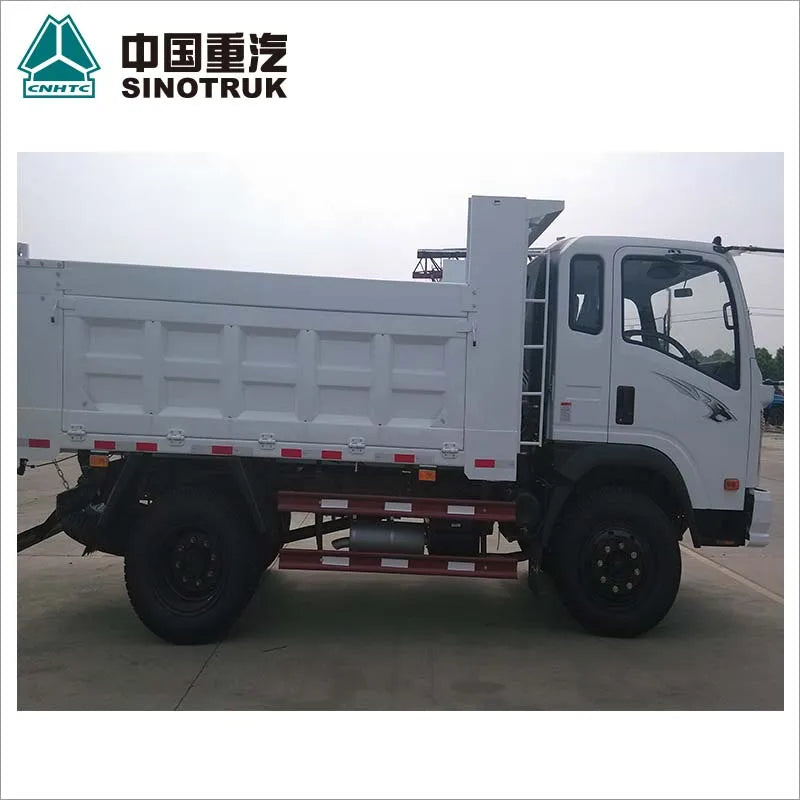

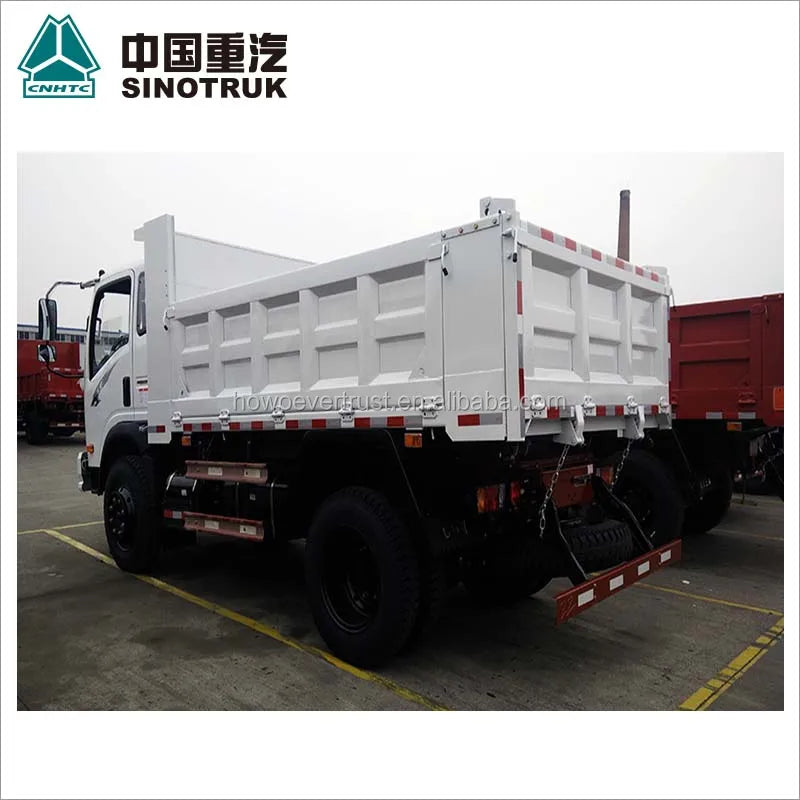

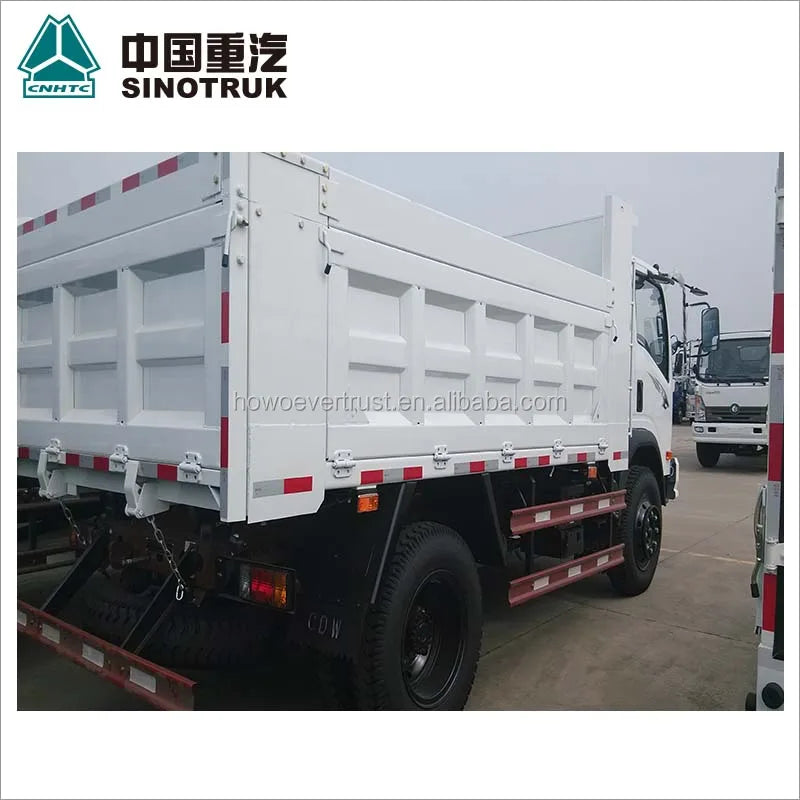

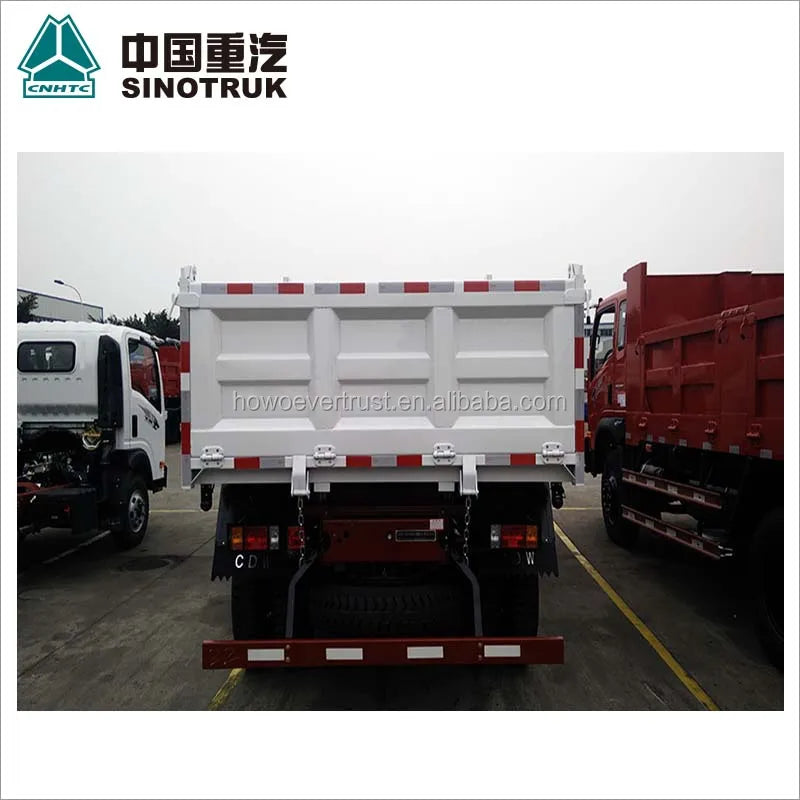

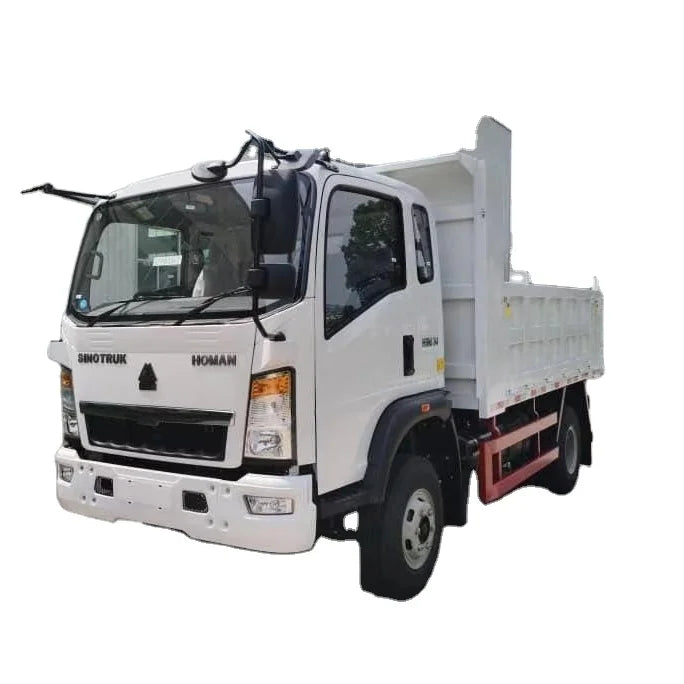

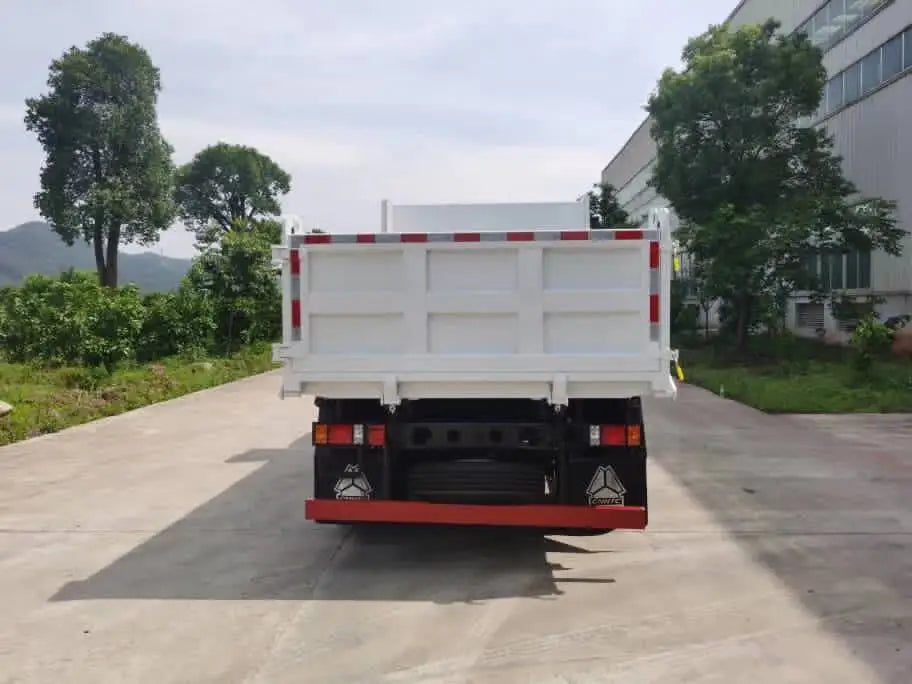

PRODUCT SHOW
|
|
||
|
Model |
5 ton dump truck |
|
|
Engine |
Model |
YunNei |
|
Fuel category |
Diesel |
|
|
Type |
4 cylinders in line, intercooler, turbo-charge,Euro-Ⅱ emission |
|
|
Stroke volume(ml) |
3298 |
|
|
Rated power(KW/r/min) |
116Hp |
|
|
Maximum torque(N.m/r/min) |
285 |
|
|
Main performance parameter |
Maximum speed(km/h) |
80 |
|
Maximum climbing ability(%) |
30% |
|
|
Minimum ground clearance(mm) |
260 |
|
|
Fuel Tank volume (L) |
90 |
|
|
Transmission Box |
5 forwards & 1 reverses |
|
|
Wheelbase(mm) |
3200 |
|
|
Kurb weight(kg) |
3800 |
|
|
Rated payload(kg) |
5000 |
|
|
Front wheel(mm) |
1655 |
|
|
Rear wheel(mm) |
1610 |
|
|
cabin |
1760 mm extended Cabin, Radio with USB |
|
|
Seating capacity |
3 |
|
|
Vehicle’s Dimension(mm) L*W*H |
5870×2260×2650 |
|
|
Cargo box dimension (mm) L*W*H |
3600×2000×600 |
|
|
Brake system |
Dual circuit compressed air brake |
|
|
Chassis section(mm) |
230×8 |
|
|
Tyre |
8.25-16×7 |
|
|
Lifting System |
Twin-plunger straight propping up |
|
|
Color |
optional |
|
|
Optional |
A/C, Fan heater |
|
